DTC P2251: O2 Sensor Reference Ground Circuit/Open (Bank 1 / Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

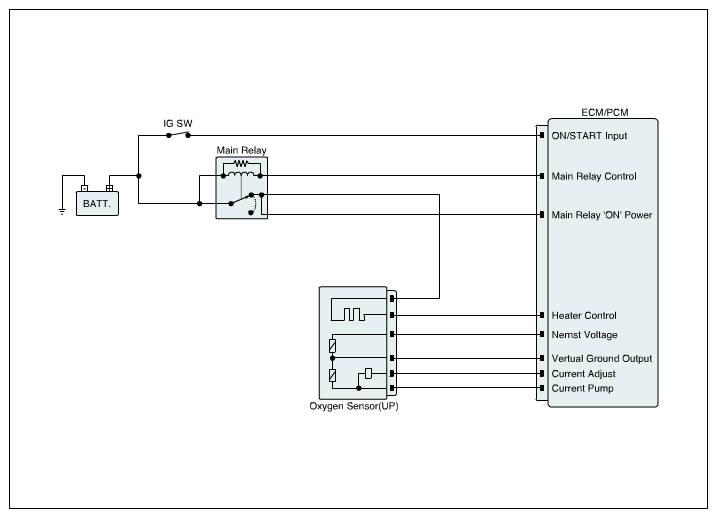

Fig 1: O2 Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

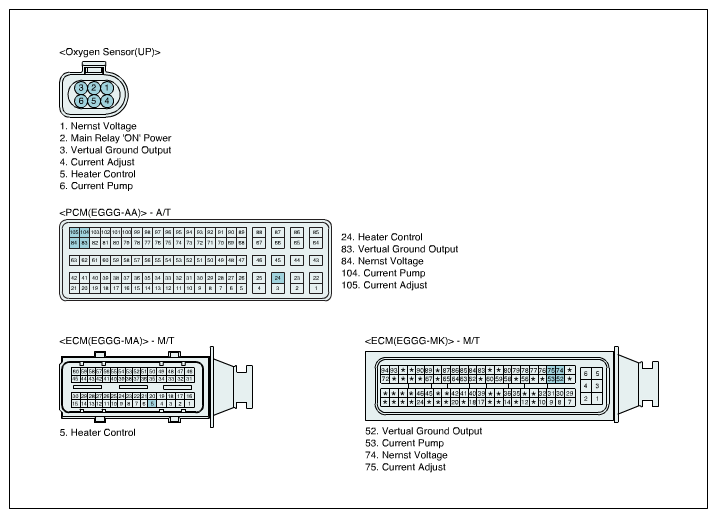

Fig 2: O2 Sensor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
