Components And Components Location: Components

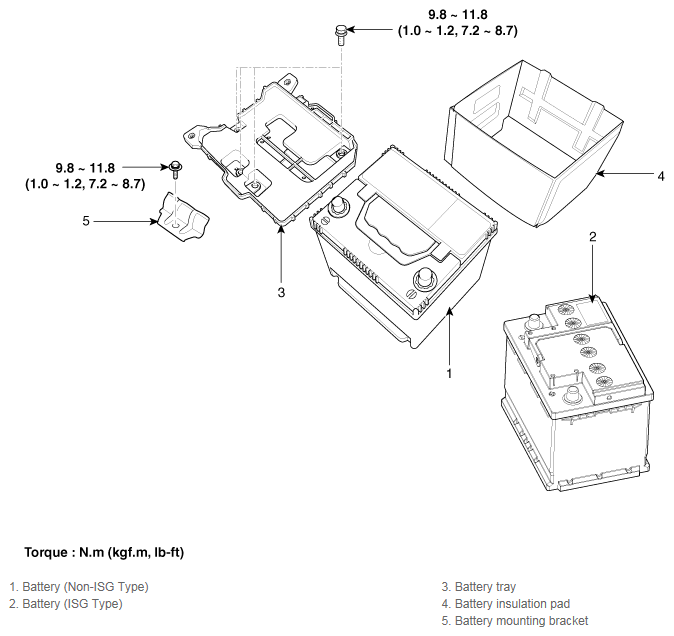

Fig 1: Locating Battery Components With Torque Specifications
G11844963Courtesy of KIA MOTORS AMERICA, INC.
