Control Circuit Inspection

■ Check Short in Control Circuit

1. IG "OFF" & Disconnect HO2S (S2) connector.
2. IG "ON".
3. Measure the voltage between heater control terminal of HO2S (S2) harness connector and chassis ground.

   Specification:  Approx. 3.5V

   Fig 1: Measuring Voltage Between Heater Control Terminal Of HO2S (S2) Harness Connector And Chassis Ground

   Courtesy of KIA MOTORS AMERICA, INC.

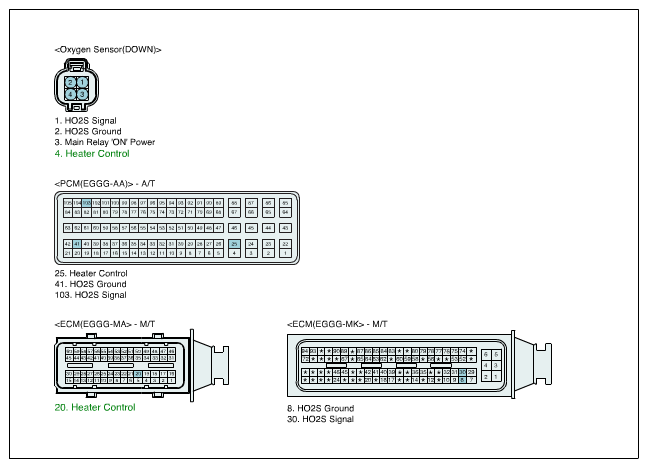

   Fig 2: Heater Connector Terminals

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Repair Short to ground in control circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
