Signal Circuit Inspection

■ Check Short to Battery in Harness

1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS1 signal terminal of ETC Motor & TPS harness connector and chassis ground.

   Specification:  Approx. 5V

   Fig 1: Measuring Voltage Between TPS1 Signal Terminal Of ETC Motor

   Courtesy of KIA MOTORS AMERICA, INC.

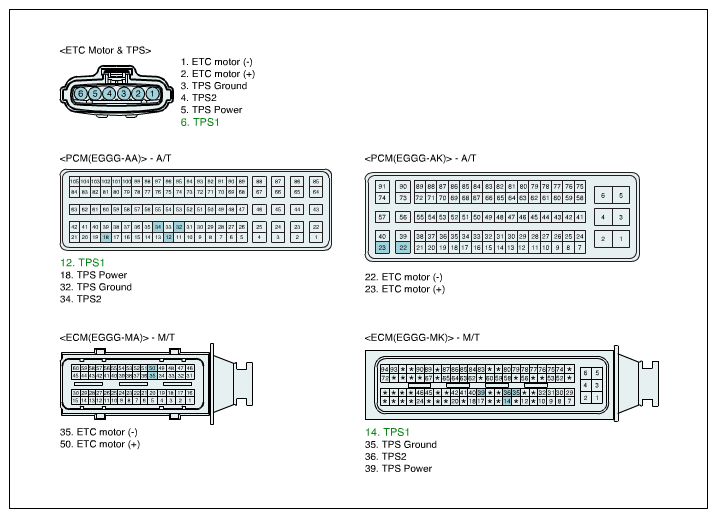

   Fig 2: TPS1 Connector Terminal

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?

   YES

   • Go to "GROUND CIRCUIT INSPECTION " procedure.

   NO

   • Repair short to battery in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
