Diagnostic Circuit Diagram

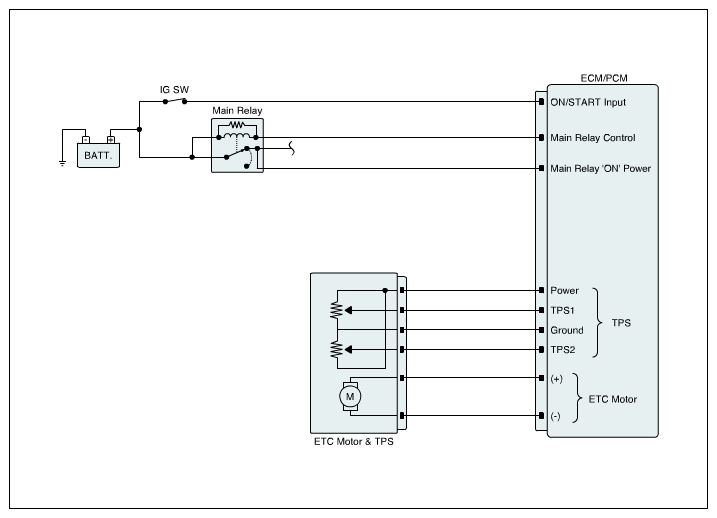

Fig 1: ETC Motor And TPS Circuit
G11847365Courtesy of KIA MOTORS AMERICA, INC.

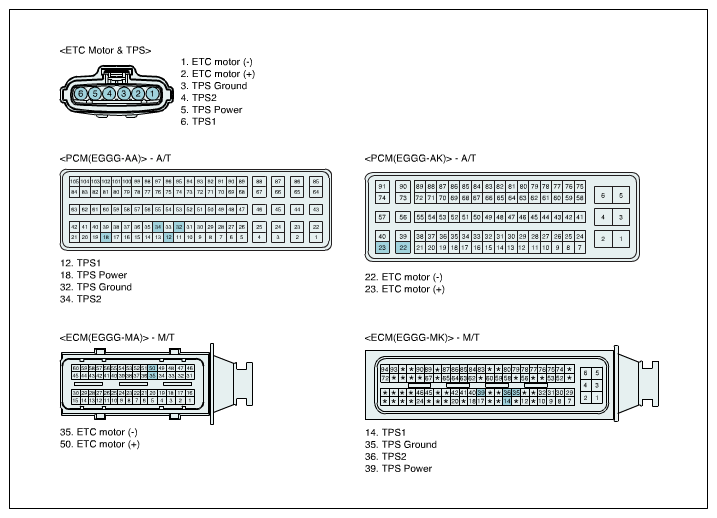

Fig 2: ETC Motor And TPS Connector Terminals
G11847366Courtesy of KIA MOTORS AMERICA, INC.
