Diagnostic Circuit Diagram

Fig 1: ETC Motor & TPS - Circuit
G11847377Courtesy of KIA MOTORS AMERICA, INC.

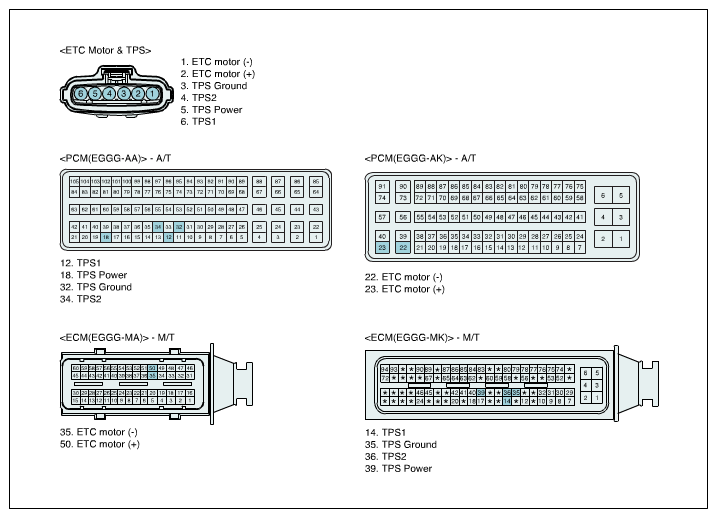

Fig 2: ETC Motor & TPS Connector Terminals
G11847378Courtesy of KIA MOTORS AMERICA, INC.
