Signal Circuit Inspection

■ Check Short to Battery In Harness

1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS2 signal terminal of ETC Motor & TPS harness connector and chassis ground.

   Specification:  Approx. 0V

   Fig 1: Measuring Voltage Between TPS2 Signal Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground

   Courtesy of KIA MOTORS AMERICA, INC.

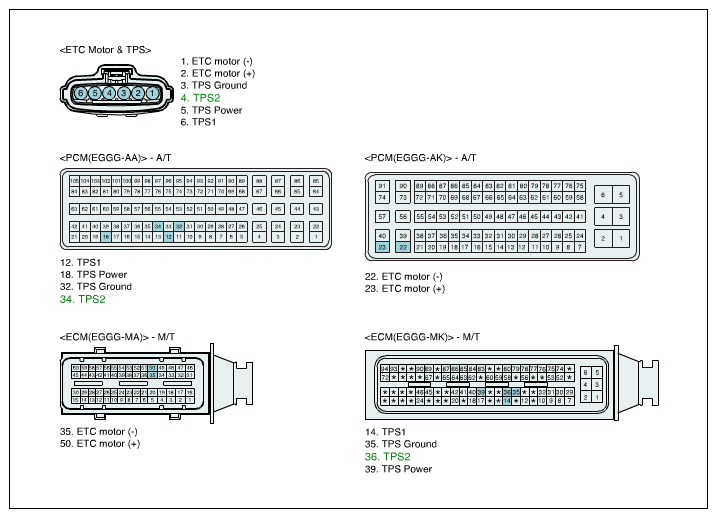

   Fig 2: ETC Motor & TPS Connector Terminals

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?

   YES

   • Go to "GROUND CIRCUIT INSPECTION " procedure.

   NO

   • Repair short to battery in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
