Diagnostic Circuit Diagram

Fig 1: Fuel Level Sensor - Circuit
G11847677Courtesy of KIA MOTORS AMERICA, INC.

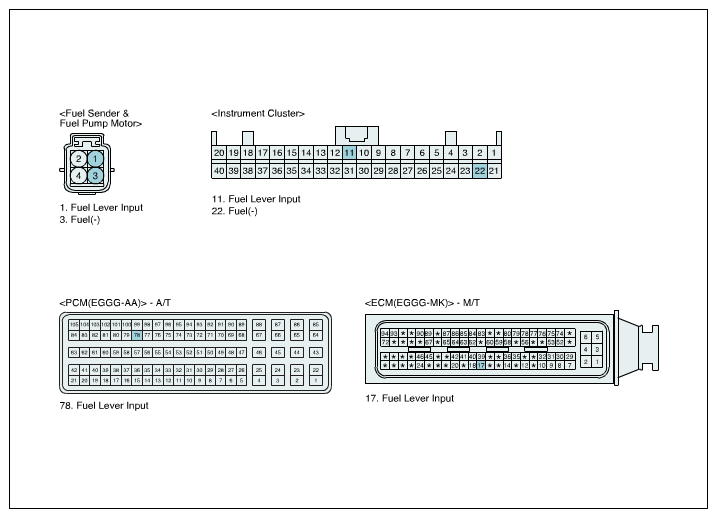

Fig 2: Fuel Level Sensor Connector Terminals
G11847678Courtesy of KIA MOTORS AMERICA, INC.
