Circuit Diagram

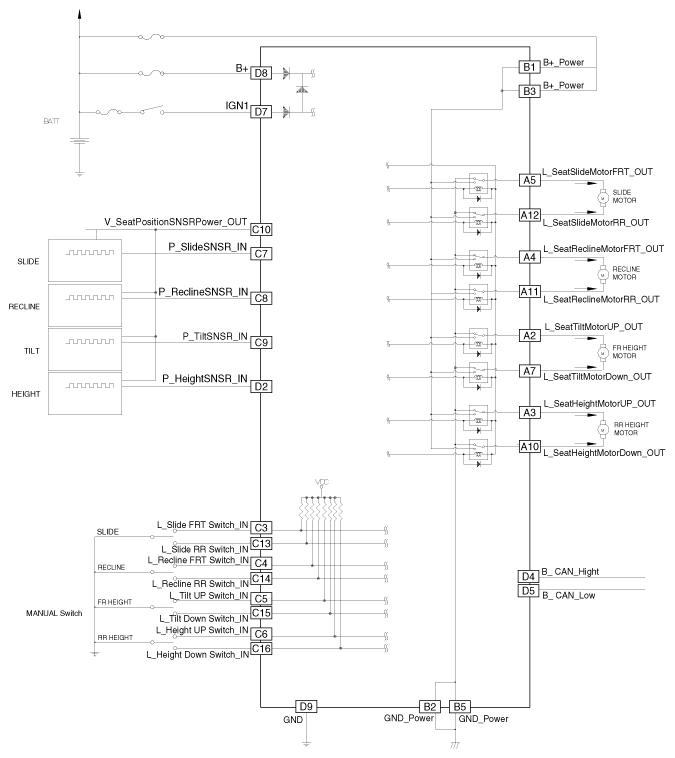

Fig 1: IMS (Integrated Memory System) Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
