Front Power Window Motor

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
Disconnect the motor connector from the motor.

Fig 1: Front Power Window Motor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Connect the terminals No. 1 and No. 2 to battery voltage (12V) and check that the motor operates smoothly when connected to the following terminals:
[Safety window motor]

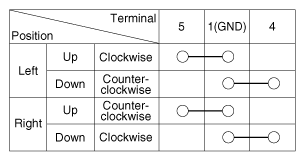

Fig 2: Safety Window Motor Terminal Description Chart
Courtesy of KIA MOTORS AMERICA, INC.
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
[Standard window motor]

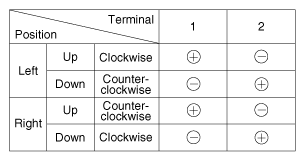

Fig 3: Standard Window Motor Terminal Description Chart
Courtesy of KIA MOTORS AMERICA, INC.
