Etc Test

Connect GDS to Data Link Cable (DLC).
IG "ON" & ENG "OFF".
Select the "Vehicle S/W Management" about related DTC with GDS.

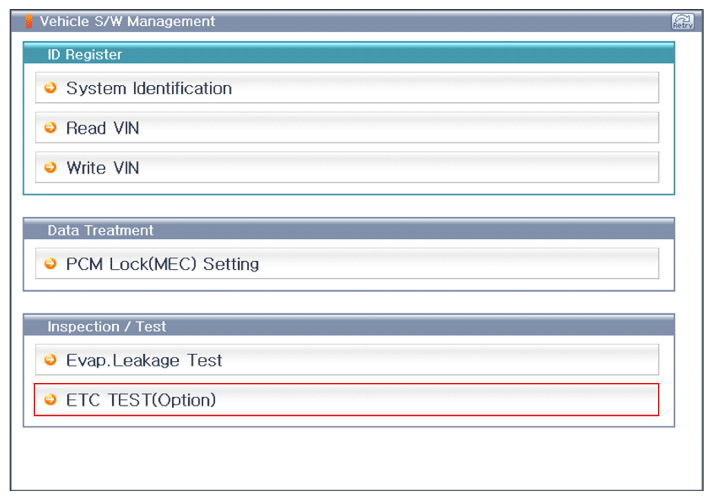

Fig 1: Screen Display - ETC Test (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

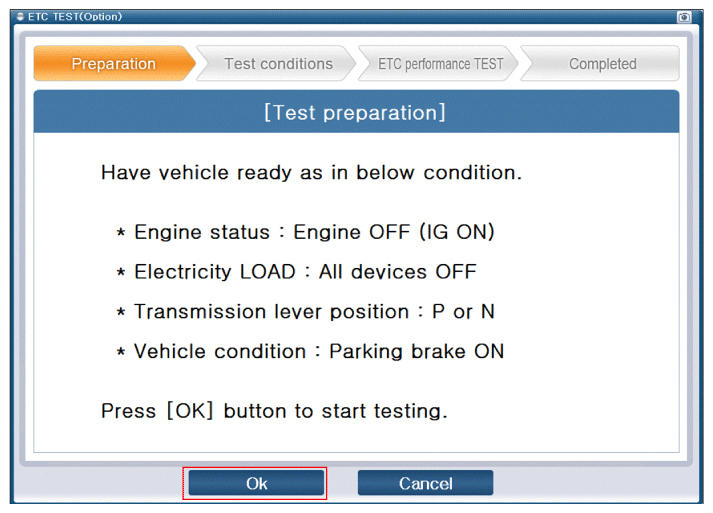

Fig 2: Screen Display - ETC Test (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

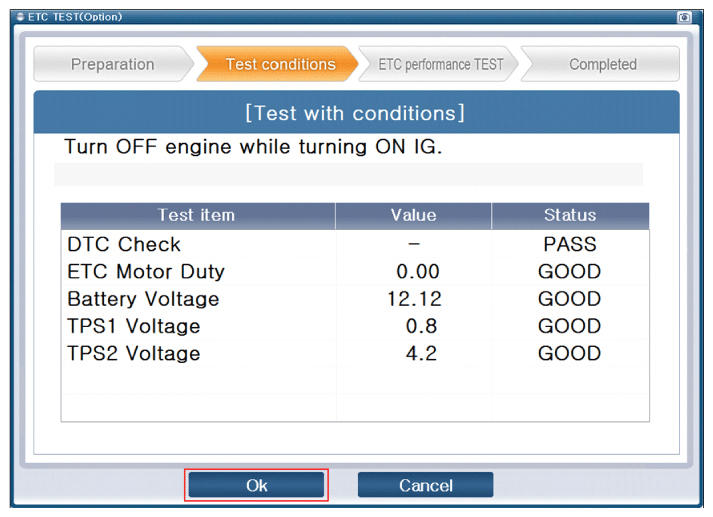

Fig 3: Screen Display - ETC Test (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

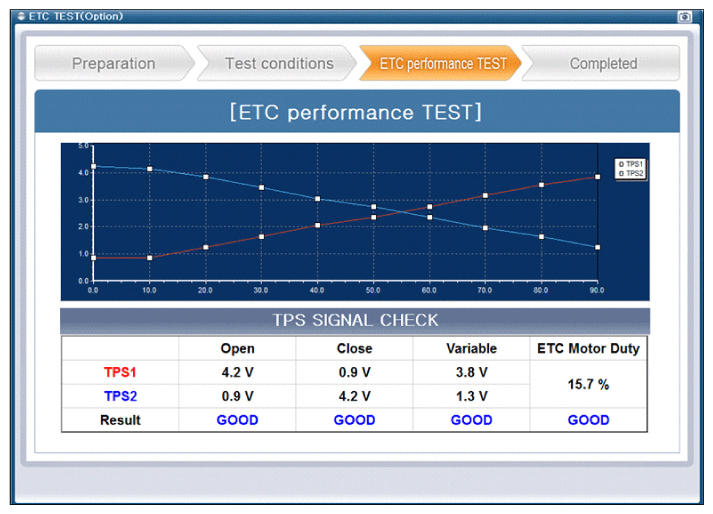

Fig 4: Screen Display - ETC Test (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

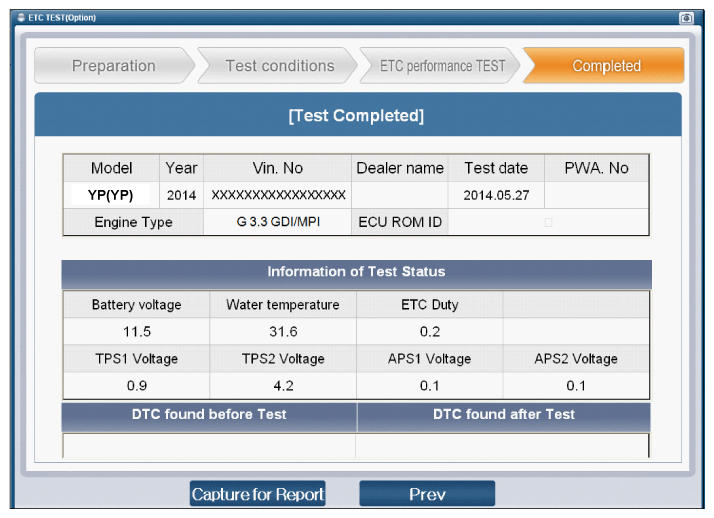

Fig 5: Screen Display - ETC Test (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
When the "ETC TEST (Option)" has been finished perfectly, go to "Verification Of VEHICLE REPAIR " procedure.
