Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System
>>
26 Brake Control Solenoid Valve(26/B_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

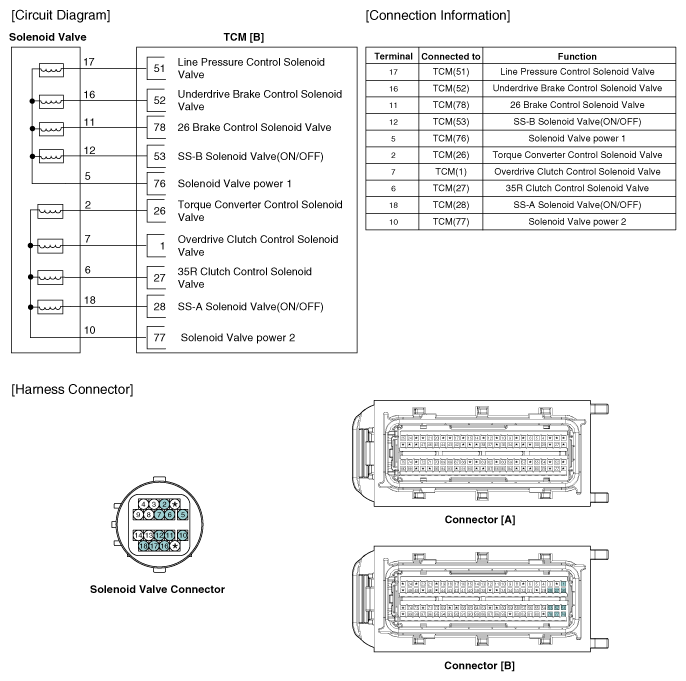

Fig 1: 26 Brake Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
