Check A/C Pressure Sensor

  1. Connect GDS to Data Link Cable (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with GDS.

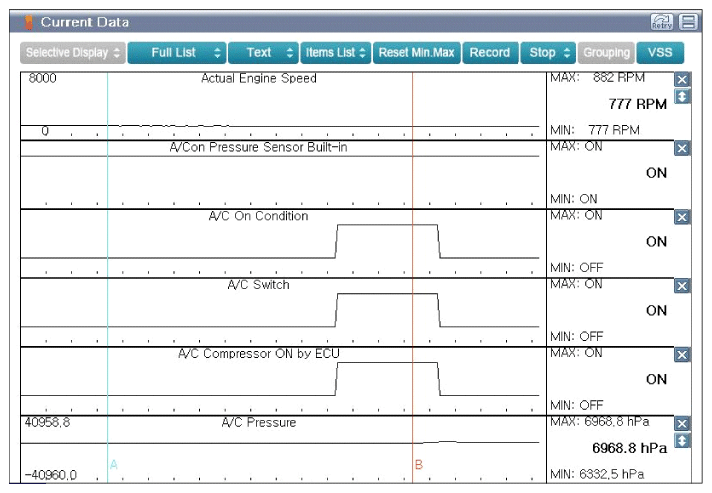

    Fig 1: Scantool Display - Current Data Of A/C Pressure Sensor
    G12274169Courtesy of KIA MOTORS AMERICA, INC.
  4. Does the A/C Pressure Sensor operate properly? (Check variation)

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace the A/C Pressure Sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
