Monitor DTC Status

  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes(DTC)  " with GDS.

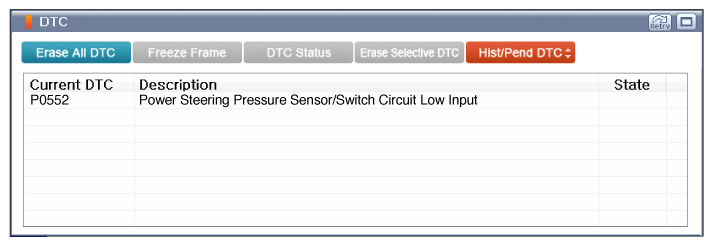

    Fig 1: Scantool Display - Diagnostic Trouble Code
    G12274176Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.
