Components And Components Location: Components

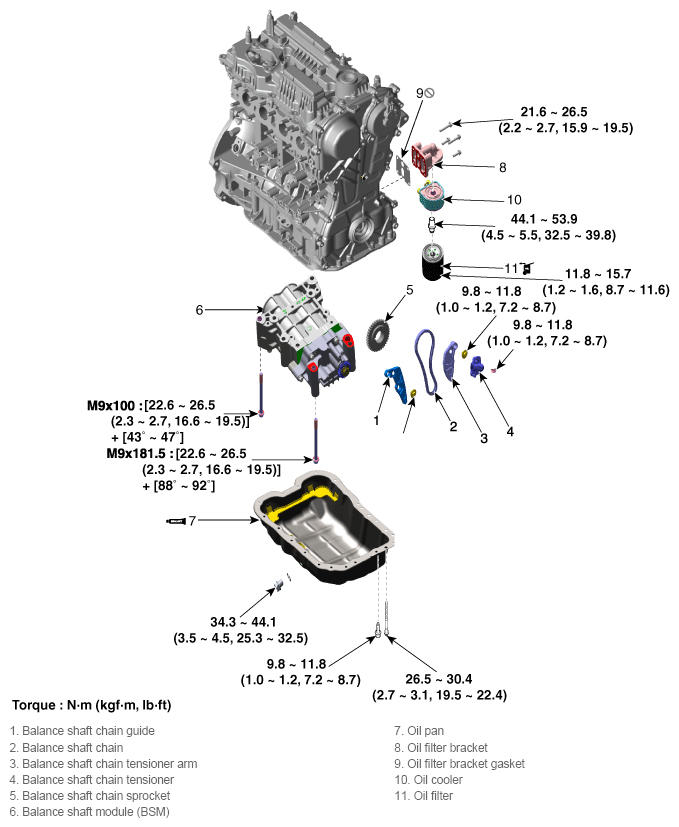

Fig 1: Locating Lubrication System Components With Torque Specifications
G12177510Courtesy of KIA MOTORS AMERICA, INC.
