Components Location

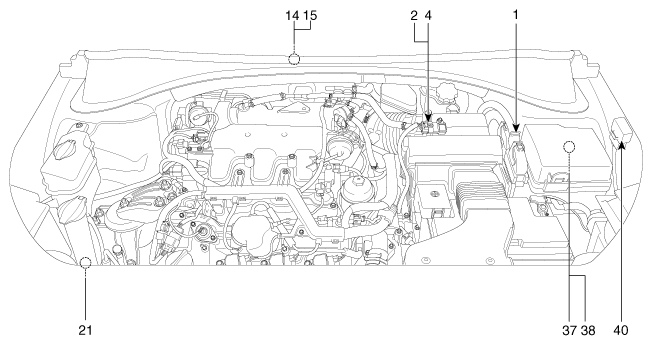

Fig 1: Engine Control System Components (1 Of 8)

G12181438

Courtesy of KIA MOTORS AMERICA, INC.

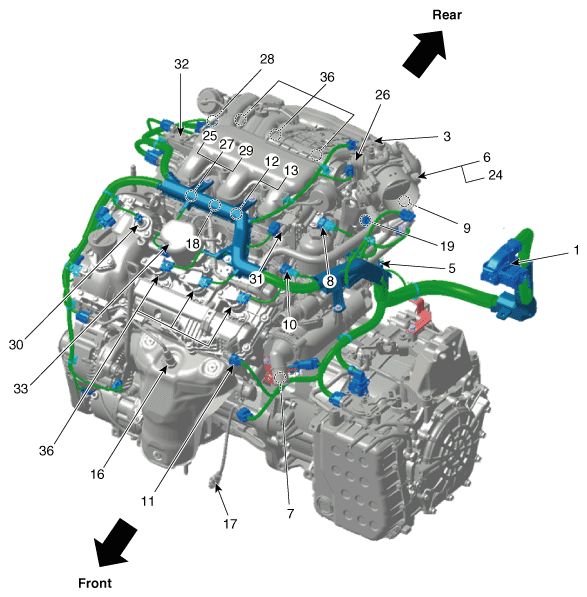

Fig 2: Engine Control System Components (2 Of 8)

G12181439

Courtesy of KIA MOTORS AMERICA, INC.

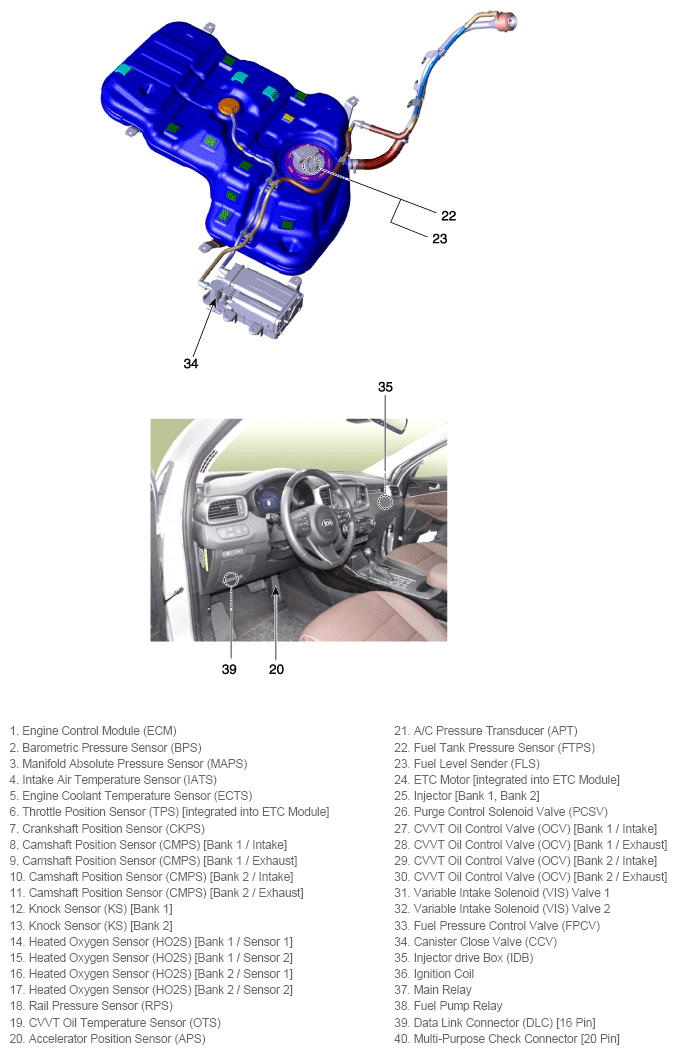

Fig 3: Engine Control System Components (3 Of 8)

G12181440

Courtesy of KIA MOTORS AMERICA, INC.

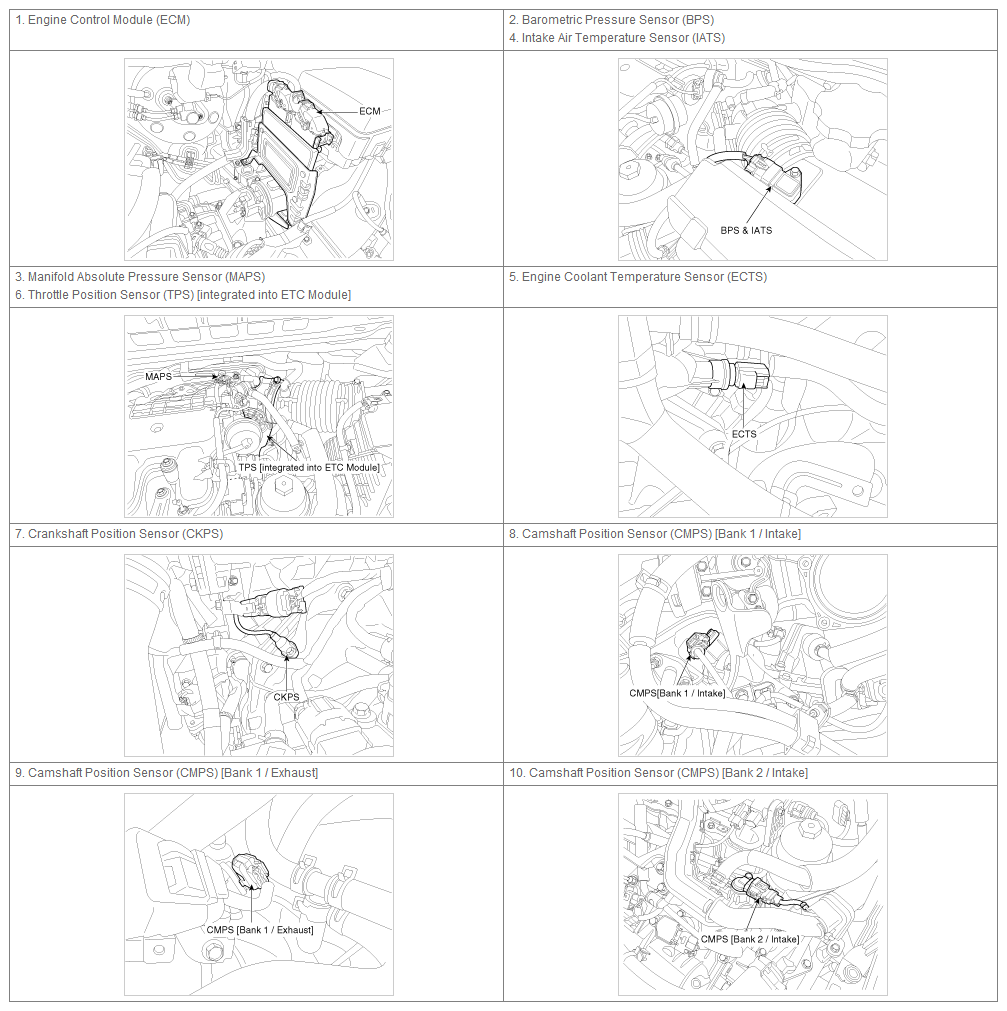

Fig 4: Engine Control System Components (4 Of 8)

G12181441

Courtesy of KIA MOTORS AMERICA, INC.

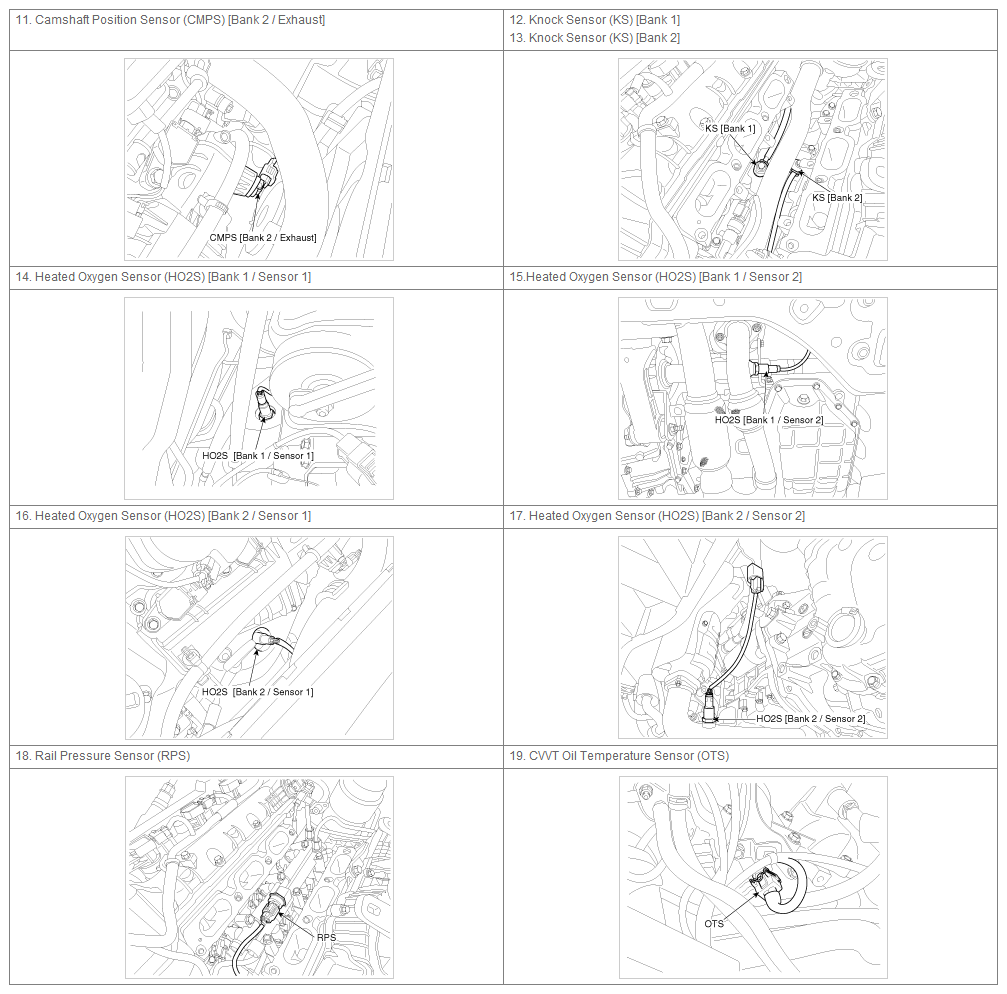

Fig 5: Engine Control System Components (5 Of 8)

G12181442

Courtesy of KIA MOTORS AMERICA, INC.

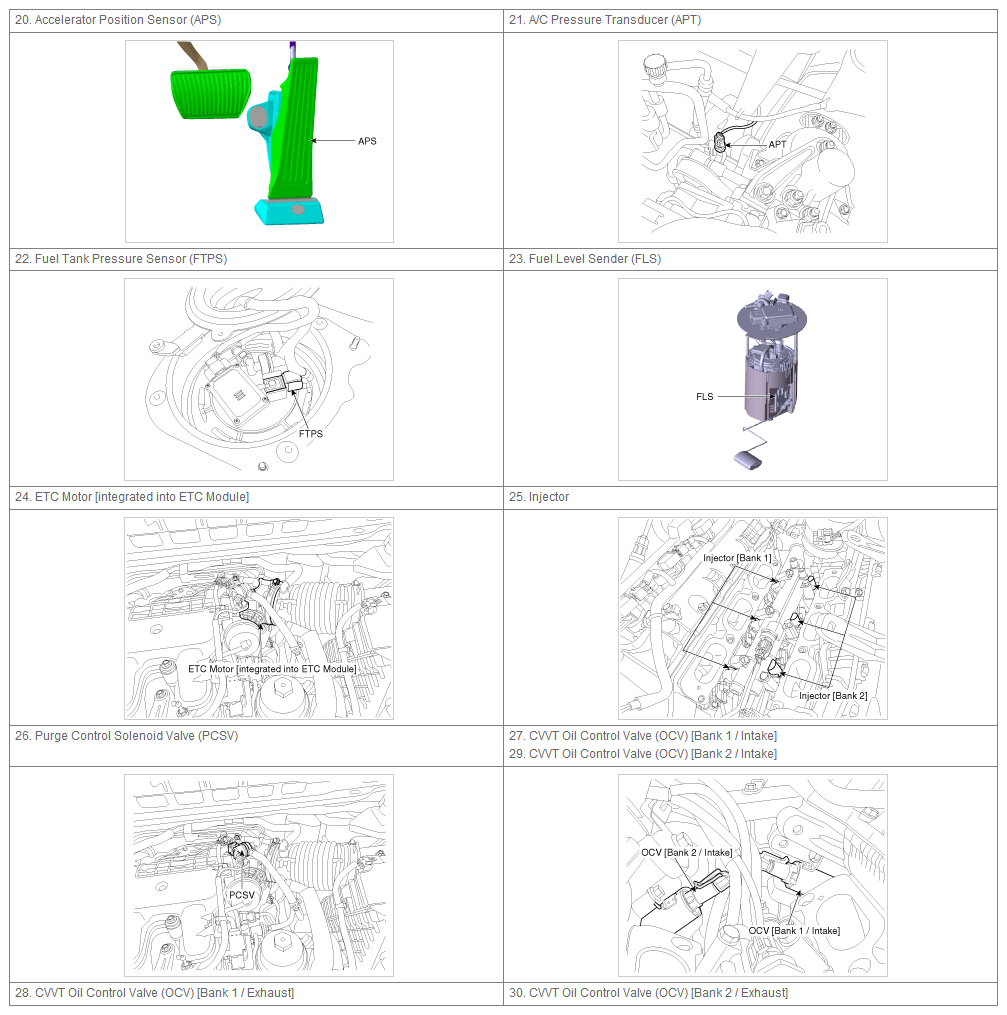

Fig 6: Engine Control System Components (6 Of 8)

G12181443

Courtesy of KIA MOTORS AMERICA, INC.

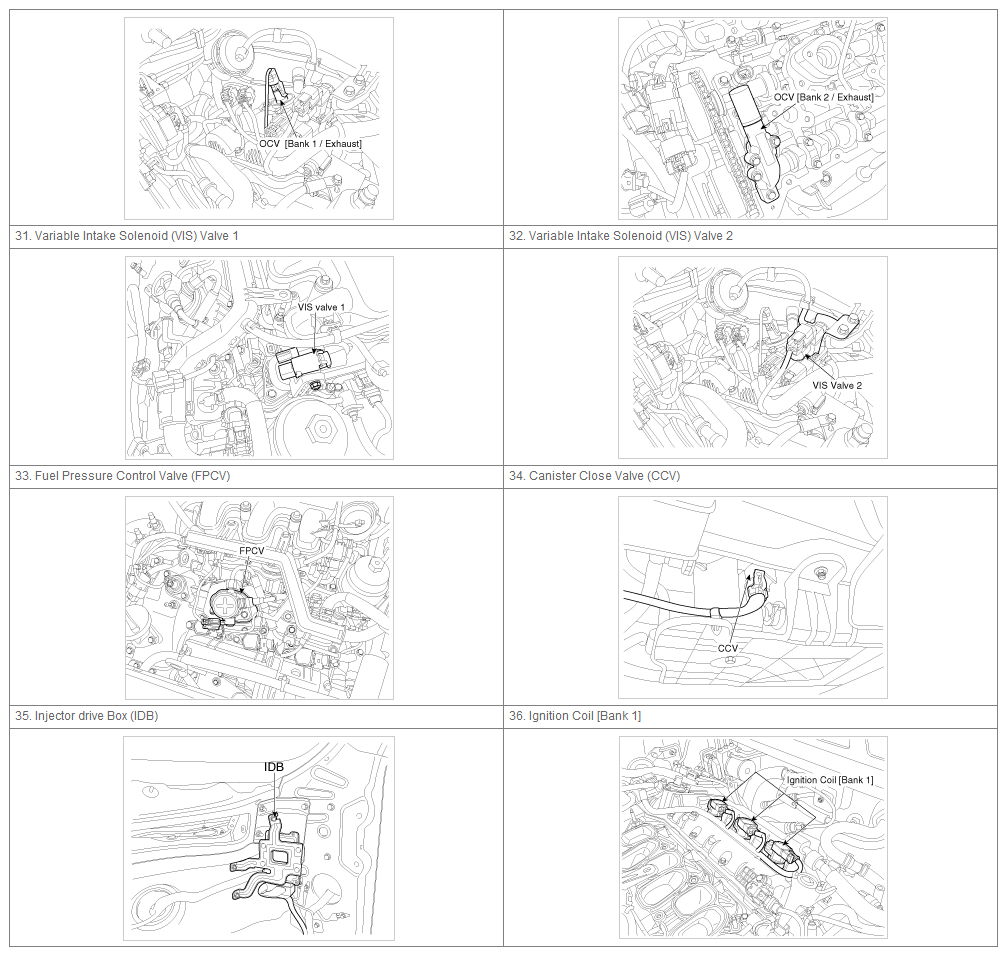

Fig 7: Engine Control System Components (7 Of 8)

G12181444

Courtesy of KIA MOTORS AMERICA, INC.

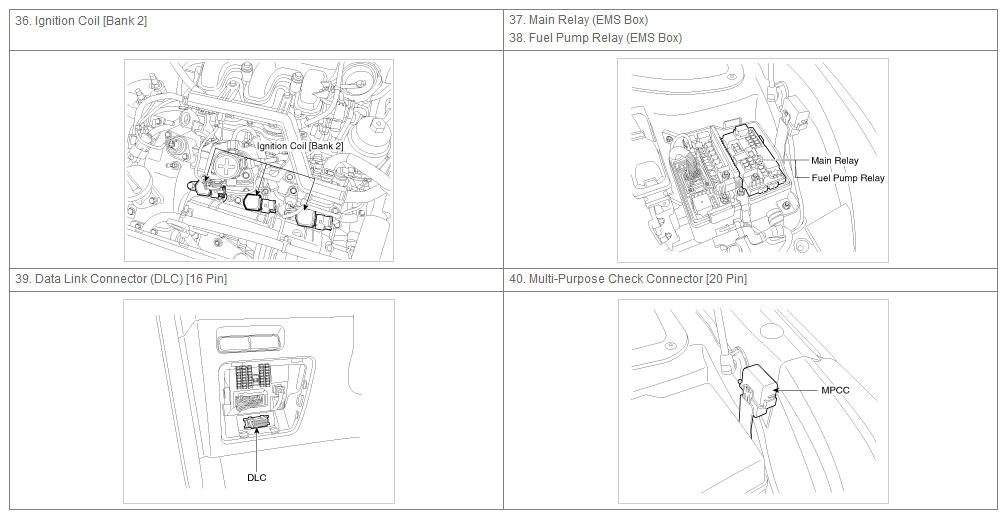

Fig 8: Engine Control System Components (8 Of 8)

G12181445

Courtesy of KIA MOTORS AMERICA, INC.
