Engine Control System - 1.6L T
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: Notes

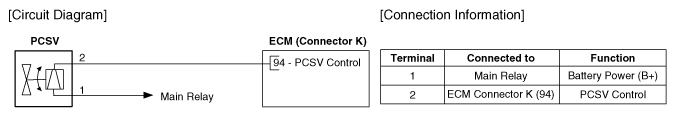

Fig 1: Purge Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
