Signal Waveform & Data

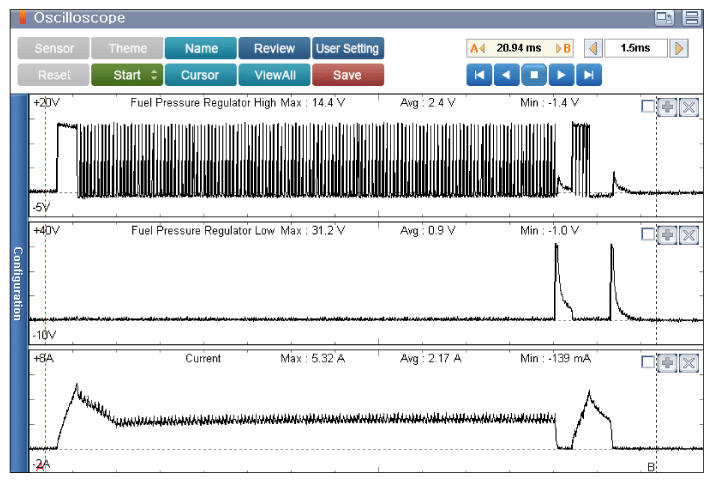

Fig 1: Screen Display - Engine Idle After Warm Up
G12281878Courtesy of KIA MOTORS AMERICA, INC.

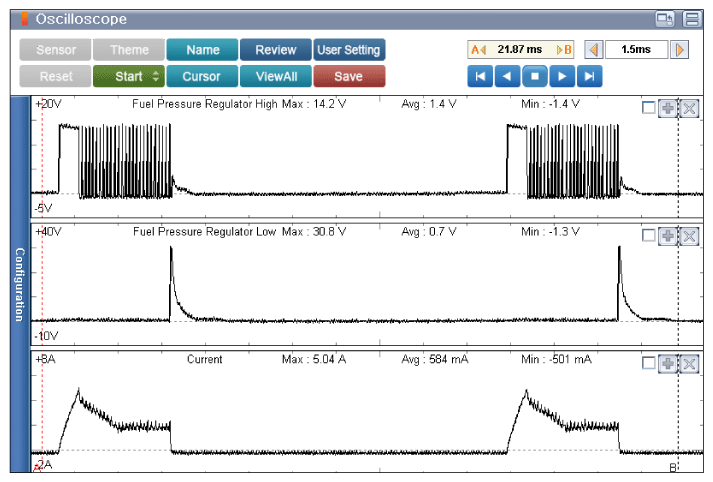

Fig 2: Screen Display - Approx. 2000RPM
G12281879Courtesy of KIA MOTORS AMERICA, INC.
