Component Inspection

Perform HO2S (S2) Heater Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. ENG "RUN".
3. Perform "Actuation Test" for HO2S (S2) Heater.

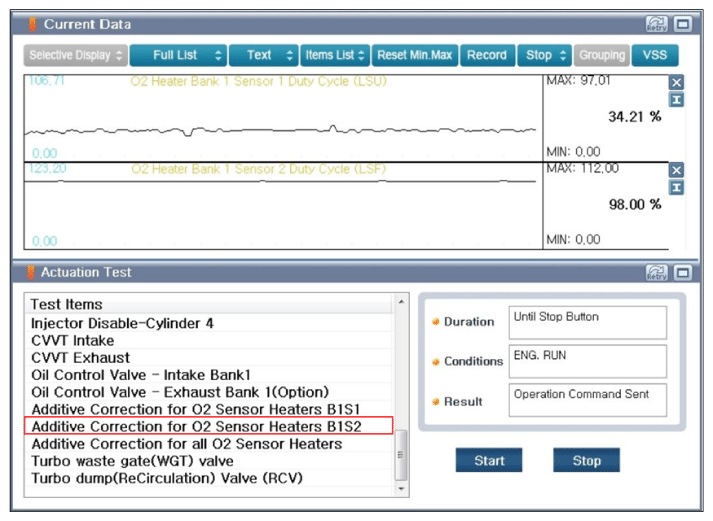

Fig 1: Screen Display - Additive Correction For O2 Sensor Heaters B1S2 Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

Inspection HO2S (S2) Heater

1. Ignition "OFF"
2. Disconnect HO2S (S2) connector.
3. Measure resistance between Pin No. 3 (Power) terminal and Pin No. 4 (Control) terminal of the HO2S (S2) Heater. (Component Side)

   Specification  : Approx. 9.0Ω (20°C) (68°F)

Confirm Part Inspection

1. Does the HO2S (S2) Heater work properly? (Check variation)

   YES

   • Go to "Verification Of Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace HO2S (S2) and then go to "Verification Of Repair " procedure.
