System Inspection

Resetting Adaptive Values

1. Connect KDS/GDS to DLC (Data Link Cable).
2. Ignition "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.

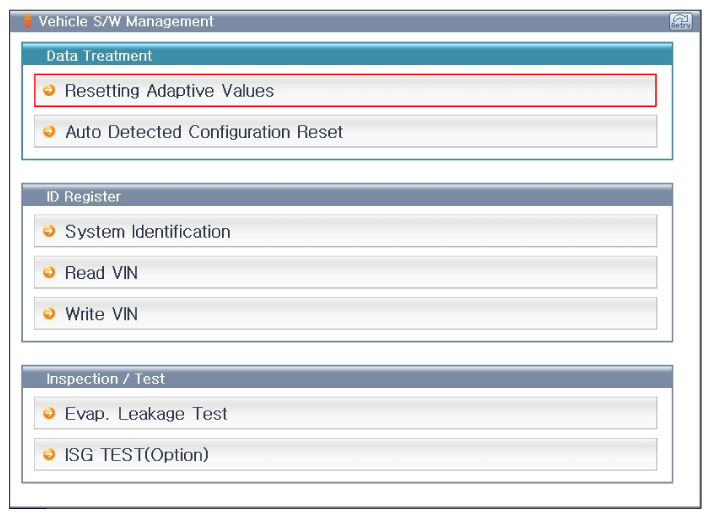

   Fig 1: Screen Display - Select Resetting Adaptive Values For Resetting TPS Values

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Screen Display - Press Reset Button To Progress For Next Procedure

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Screen Display - Press OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Screen Display - Completed

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "Verification Of Repair " procedure.
