Engine Control System Diagnosis - 1.6L T (3 Of 3)
>>
DTC P2251: O2 Sensor Reference Ground Circuit / Open (Bank 1 / Sensor 1)
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

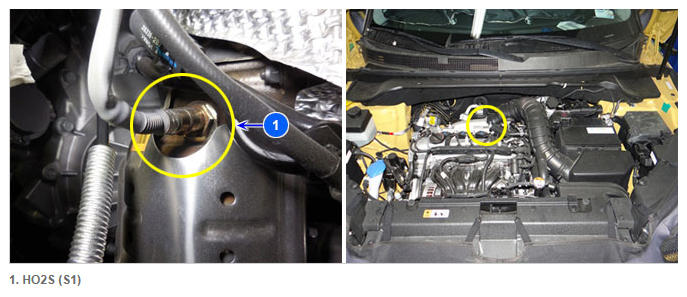

Fig 1: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1) Component Location
Courtesy of KIA MOTORS AMERICA, INC.
HO2S (S1)
Courtesy of KIA MOTORS AMERICA, INC.
