Circuit Diagram

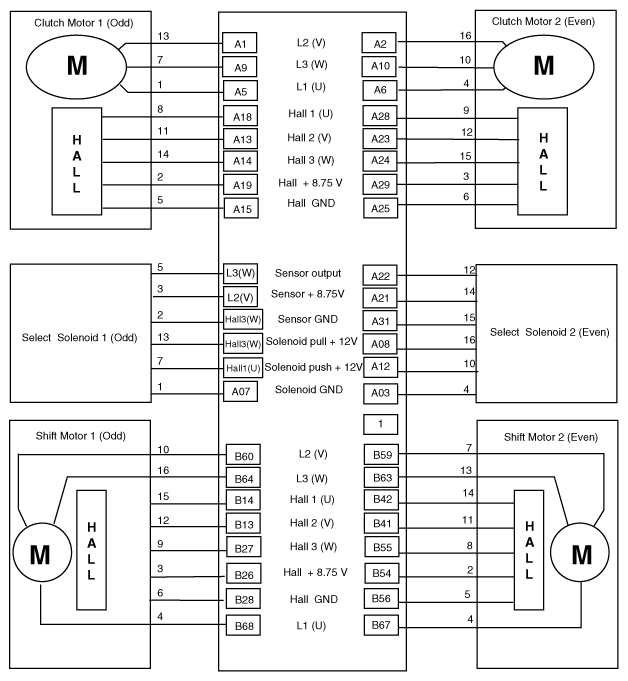

Fig 1: DCT Control Module Circuit Diagram (1 Of 2)
G12238780Courtesy of KIA MOTORS AMERICA, INC.

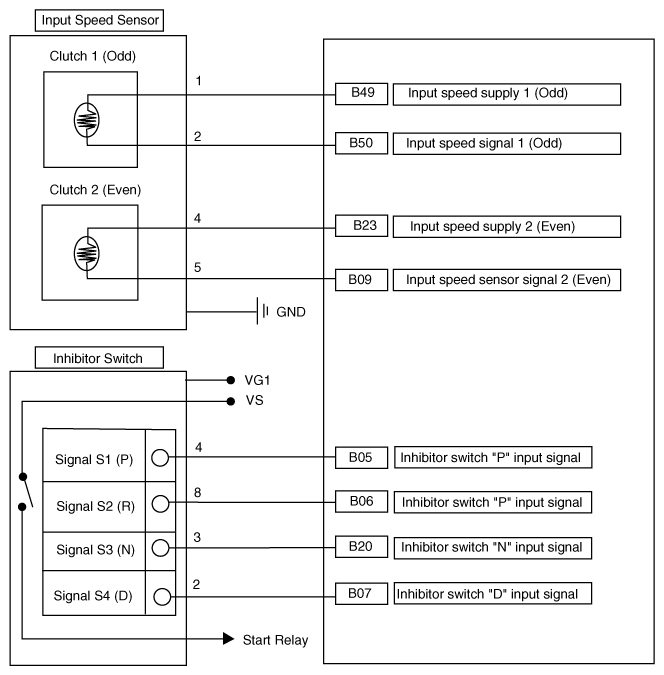

Fig 2: DCT Control Module Circuit Diagram (2 Of 2)
G12238781Courtesy of KIA MOTORS AMERICA, INC.
