Repair and Diagnosis (Single Page)
>>
Transmission
>>
Transmission Control Systems
>>
Dual Clutch Transmission Control System - 1.6L T
>>
DCT Control Module (TCM)
>>
Schematic Diagrams
>>
TCM Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
TCM Connector

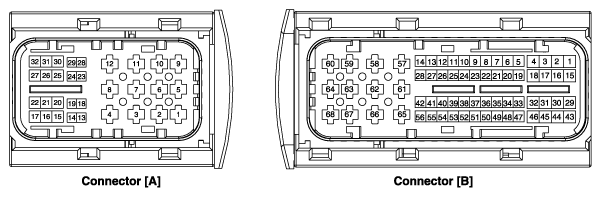

Fig 1: DCT Control Module Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
