Signal Waveform & Data

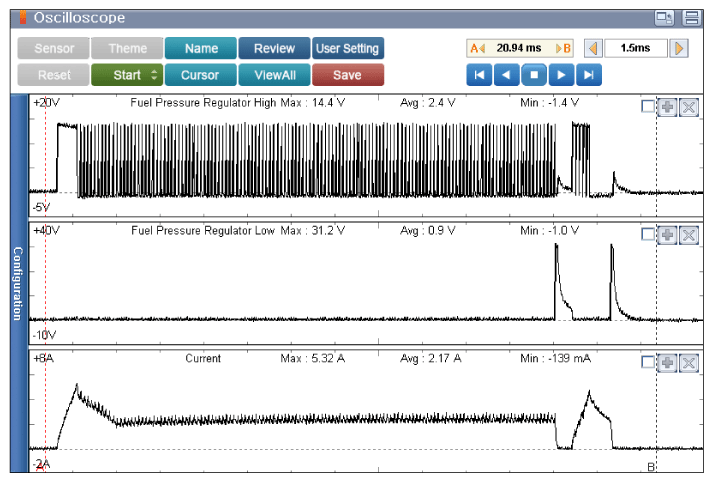

Fig 1: Screen Display - Engine Idle After Warm Up
G12281887Courtesy of KIA MOTORS AMERICA, INC.

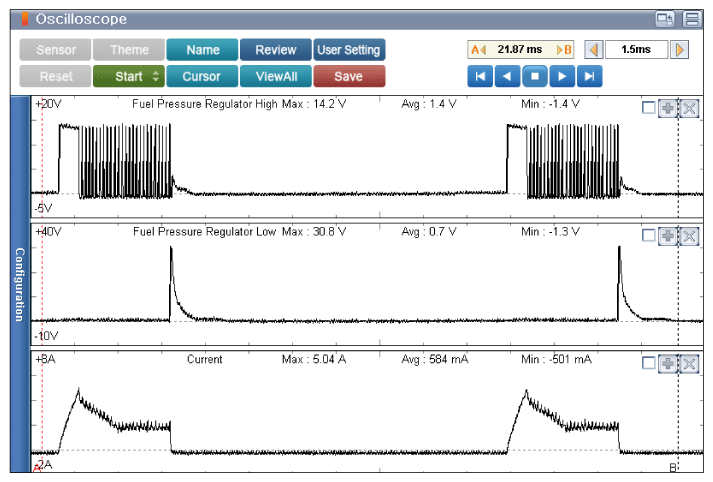

Fig 2: Screen Display - Approx. 2000RPM
G12281888Courtesy of KIA MOTORS AMERICA, INC.
