Variant coding

  1. Connect the GDS to the data link connector.
  2. Turn the ignition "ON".
  3. Select vehicle name and system.
  4. Select the variant coding.
  5. Perform variant coding according to the instructions on the screen.

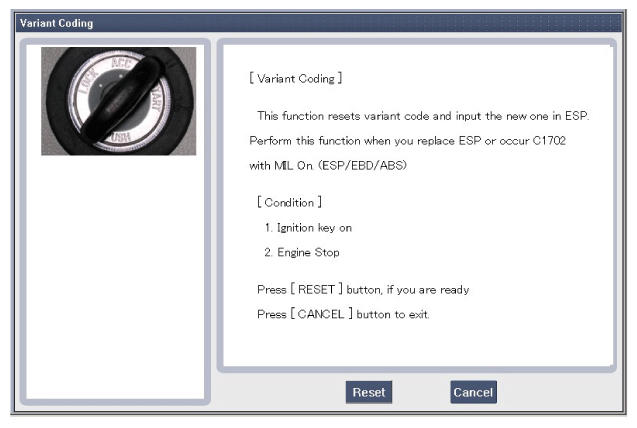

    Fig 1: Scantool Display - Variant Coding
    G12225630Courtesy of KIA MOTORS AMERICA, INC.
  6. Ignition "OFF" and then ignition "ON".
  7. The variant coding is completed.
