Components And Components Location: Components

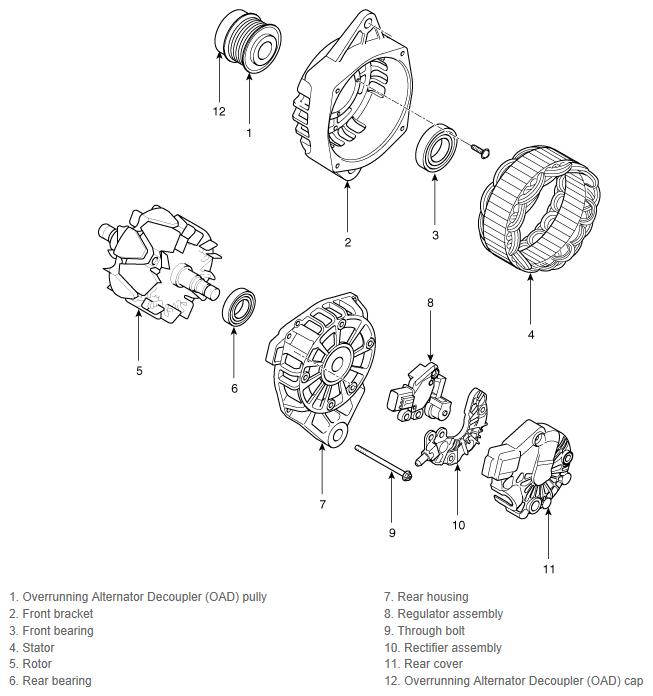

Fig 1: Alternator Components Location

G12227066

Courtesy of KIA MOTORS AMERICA, INC.
