Components And Components Location: Components

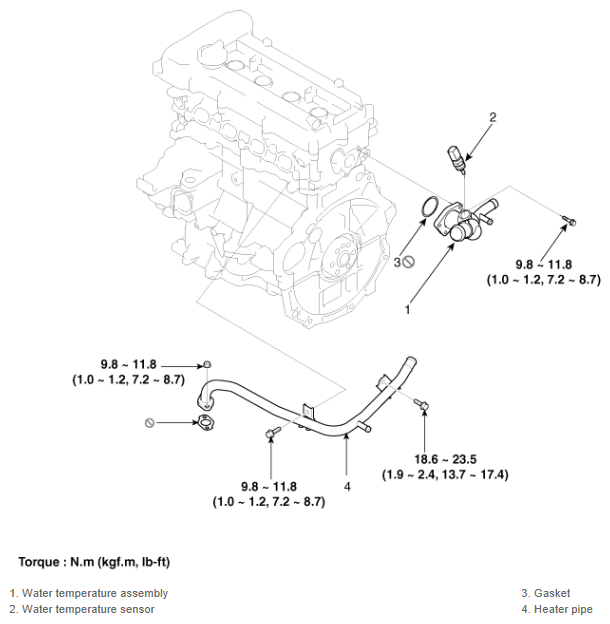

Fig 1: Water Temperature Control Assembly Components Location With Torque Specification
G12226782Courtesy of KIA MOTORS AMERICA, INC.
