Components And Components Location: Components

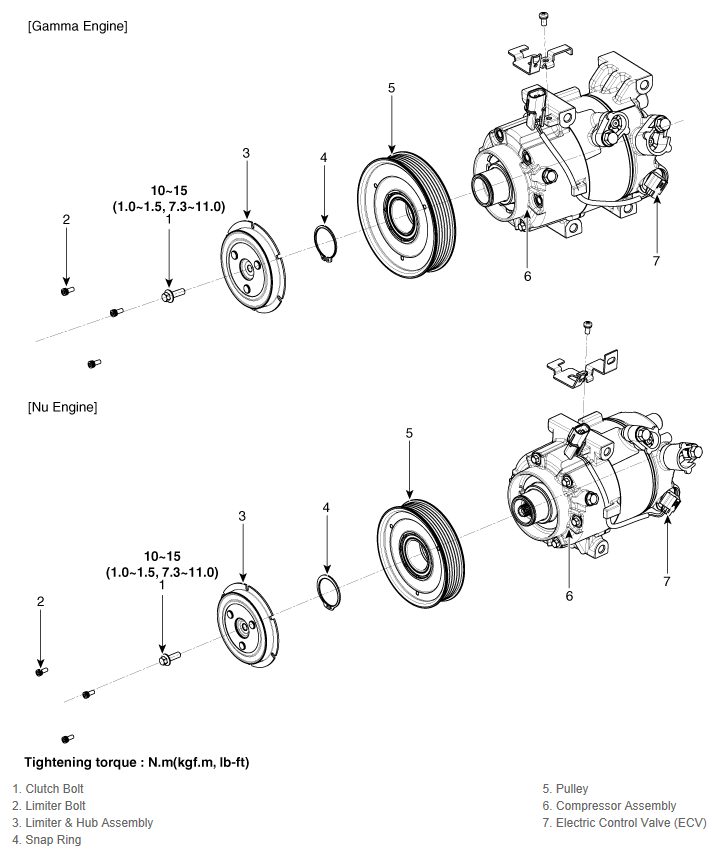

Fig 1: Compressor Components With Torque Specification
G12238049Courtesy of KIA MOTORS AMERICA, INC.
