Signal Waveform & Data

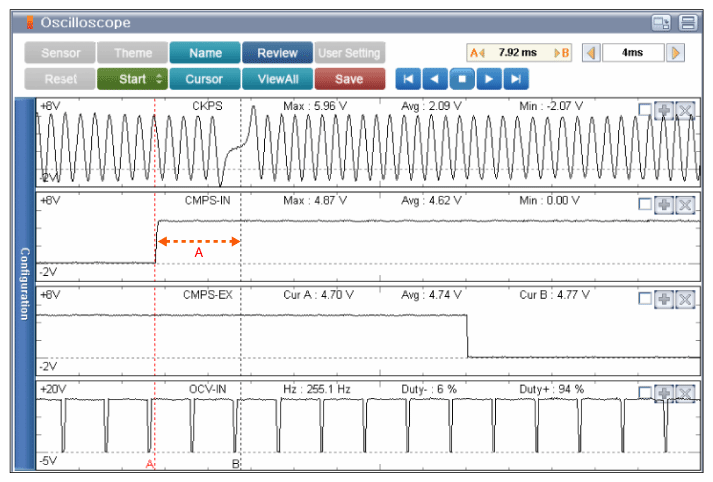

Fig 1: Scantool Display - Normal Waveforms Of OCV (Intake) & CKPS, CMPS (IN, EX) At Engine Idle
G12211576Courtesy of KIA MOTORS AMERICA, INC.
  1. CKPS & CMPS (Intake side) synchronization - There are about 4 ~ 5 teeth between the CKPS missing tooth and CMPS signal.
