Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Check the "Current Data"  for related DTC with KDS/GDS.

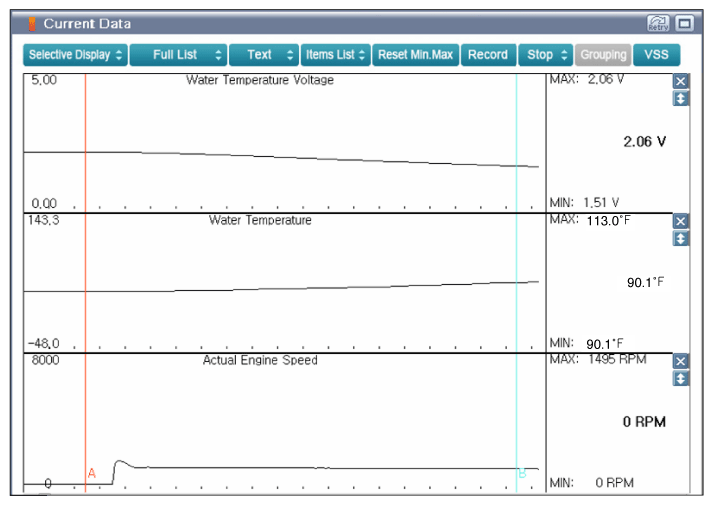

    Fig 1: Scantool Display - Cold Engine Condition
    G12211813Courtesy of KIA MOTORS AMERICA, INC.

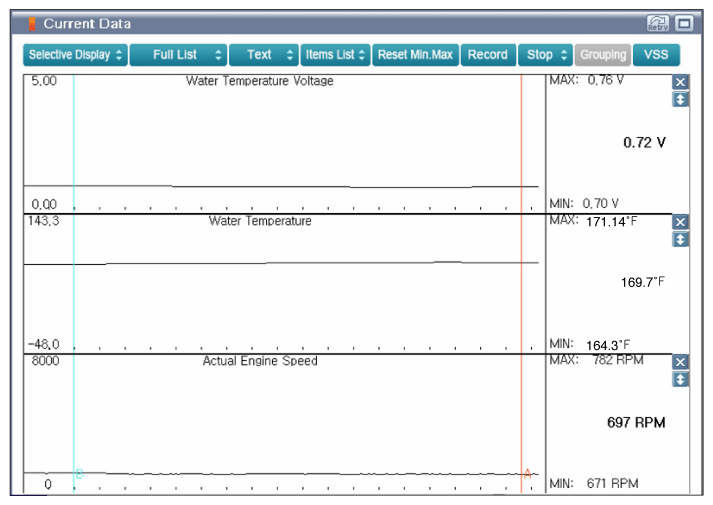

    Fig 2: Scantool Display - Engine At Idle And No Load
    G12211814Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Scantool Display - Engine Coolant Temperature Sensor (Open Circuit And Value Fixed At Current Temperature)
    G12211815Courtesy of KIA MOTORS AMERICA, INC.
  3. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.
