Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Check the "Current Data  " about related DTC with KDS/GDS during Cranking the engine.

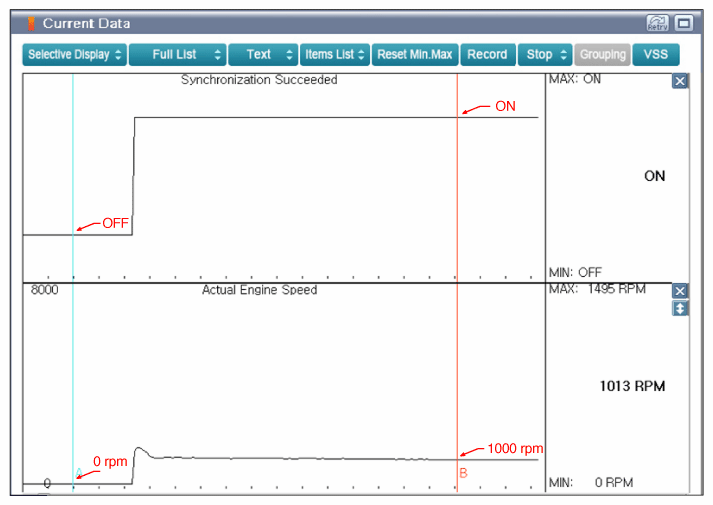

    Fig 1: Scantool Display - CKPS And CMPS Sensor Synchronization
    G12212298Courtesy of KIA MOTORS AMERICA, INC.
  3. If the parameter is not similar with shown data, measure related waveforms with KDS/GDS.

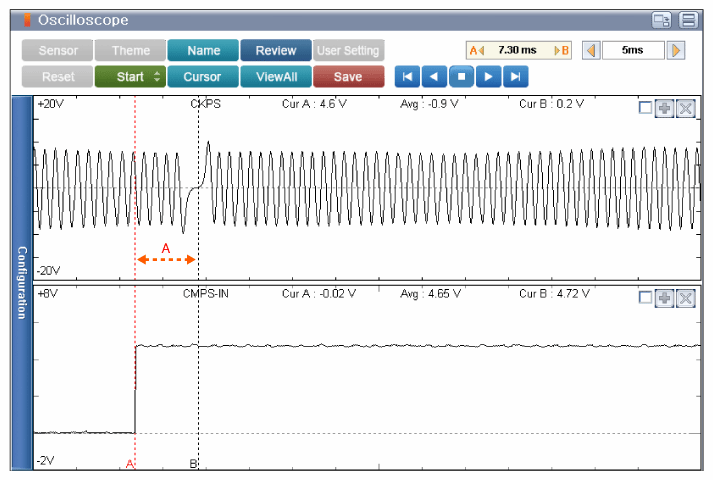

    Fig 2: Scantool Display - Normal Waveforms Of CKPS And CMPS (Intake) At Idle
    G12212299Courtesy of KIA MOTORS AMERICA, INC.

    A: CKPS & CMPS (Intake) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.

  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
