Signal Waveform & Data

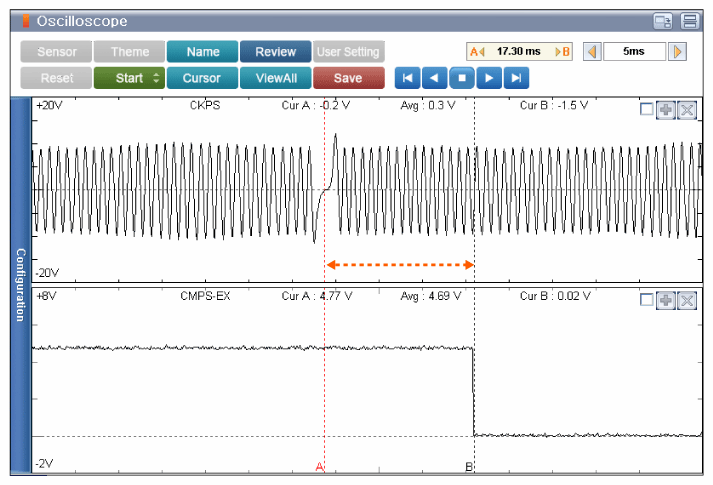

Fig 1: Scantool Display - Normal Waveforms Of CKPS & CMPS (Exhaust) At Engine Idle

Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Exhaust) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
