Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

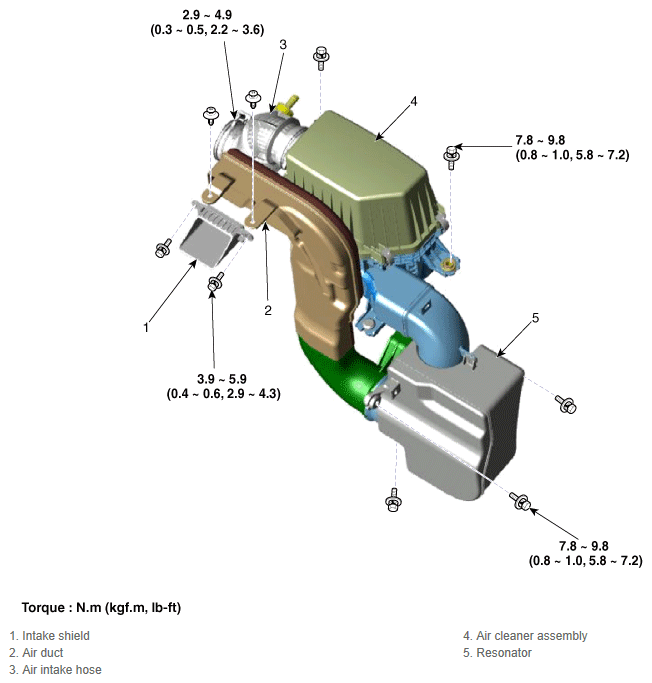

Fig 1: Air Cleaner Components Location With Torque Specification
G12226484Courtesy of KIA MOTORS AMERICA, INC.
