Monitor DTC Data

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

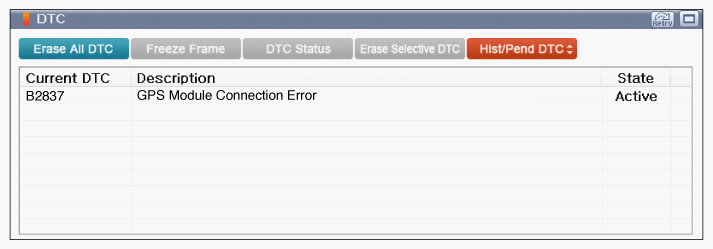

Fig 1: Screen Display - DTC Description
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "Wiring Inspection " procedure.
NO
- Go to "Verification Of Vehicle Repair " procedure.
