Components And Components Location: Components

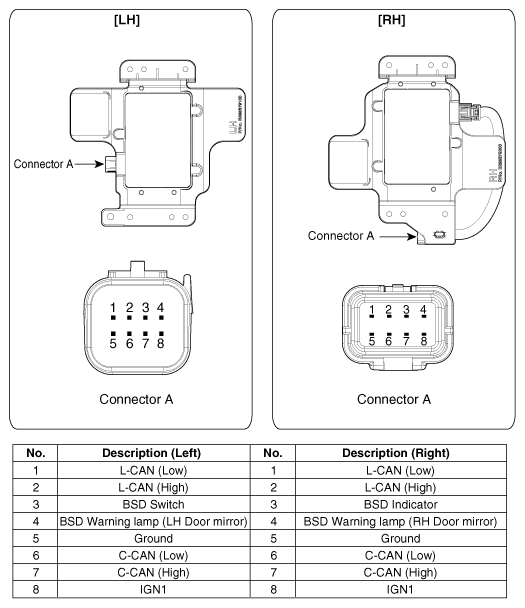

Fig 1: Blind Spot Detection Unit Component Description Chart
G12235357Courtesy of KIA MOTORS AMERICA, INC.
