Component Inspection

■ Perform HO2S (S1) Heater Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Engine "Running".
3. Perform "Actuation Test" for HO2S (S1) Heater.

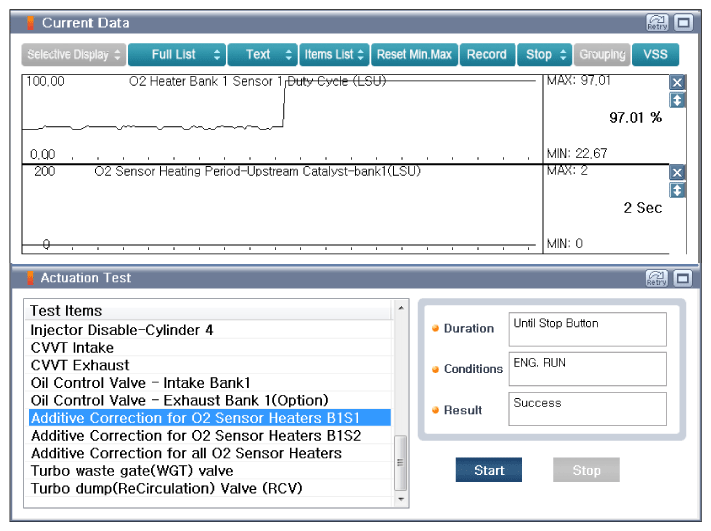

   Fig 1: Scantool Display - Additive Correction For O2 Censor Heaters B1S1 Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

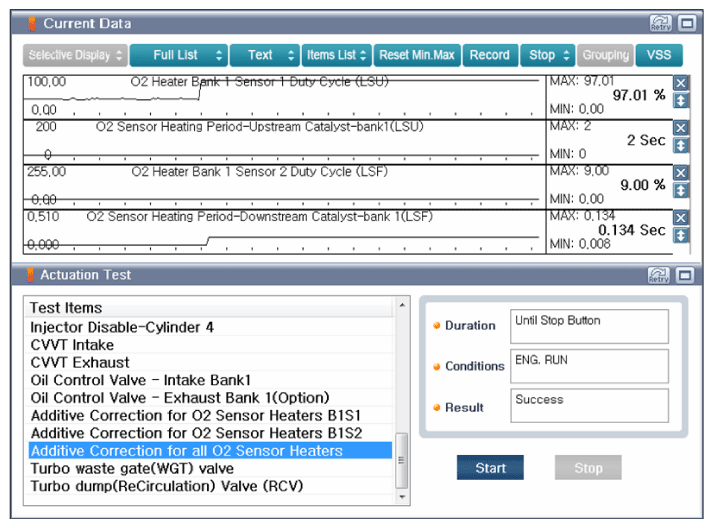

   Fig 2: Scantool Display - Additive Correction For All O2 Sensor Heaters Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

■ Inspect HO2S (S1) Heater

1. Ignition "OFF".
2. Disconnect HO2S (S1) connector.
3. Measure resistance between Pin No. 4 (Power) terminal and Pin No. 5 (Control) terminal of the HO2S (S1) Heater. (Component Side)

   Specification:  Approx. 3.2Ω ± 0.8Ω at 20°C (68°F)

■ Confirm Part Inspection

1. Does the HO2S (S1) heater operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace HO2S (S1) and then go to "Verification of Vehicle Repair " procedure.
