System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select the "Vehicle S/W Management  " for related DTC with KDS/GDS.

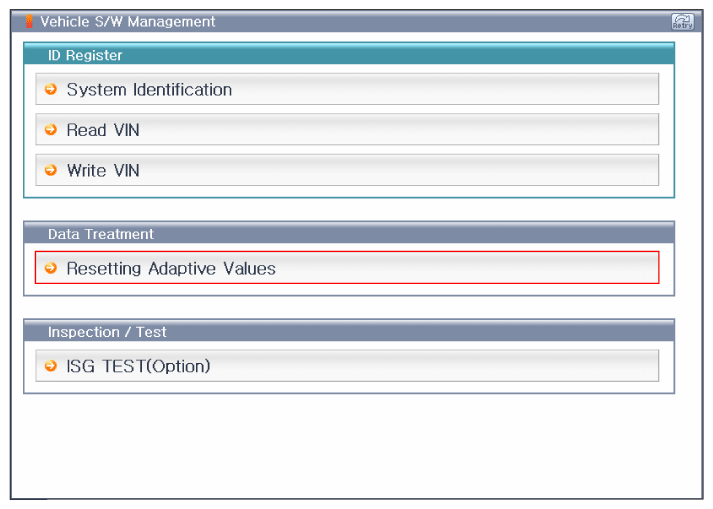

   Fig 1: Scantool Display - Selecting Resetting Adaptive Values To Reset TPS Values

   Courtesy of KIA MOTORS AMERICA, INC.

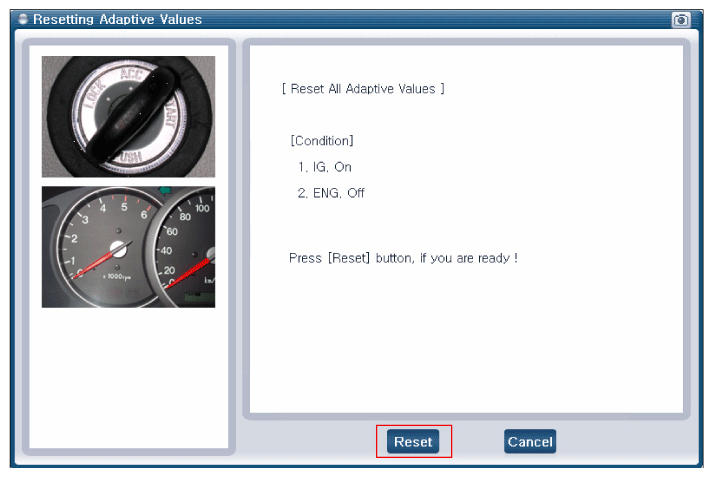

   Fig 2: Scantool Display - Selecting Reset Button To Continue To Next Procedure

   Courtesy of KIA MOTORS AMERICA, INC.

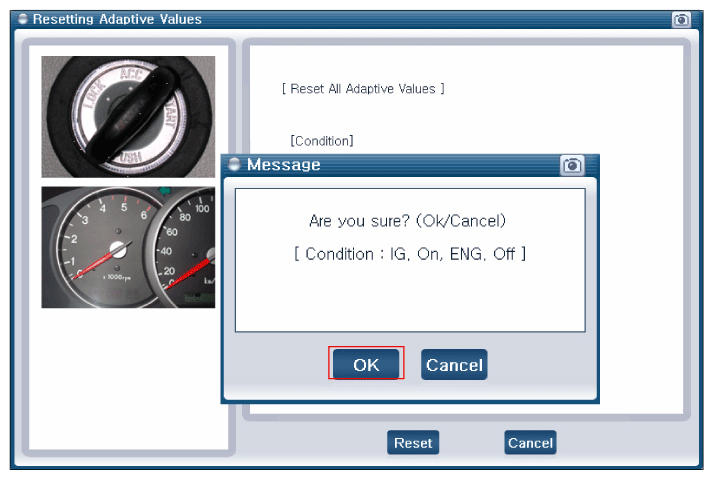

   Fig 3: Scantool Display - Selecting OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

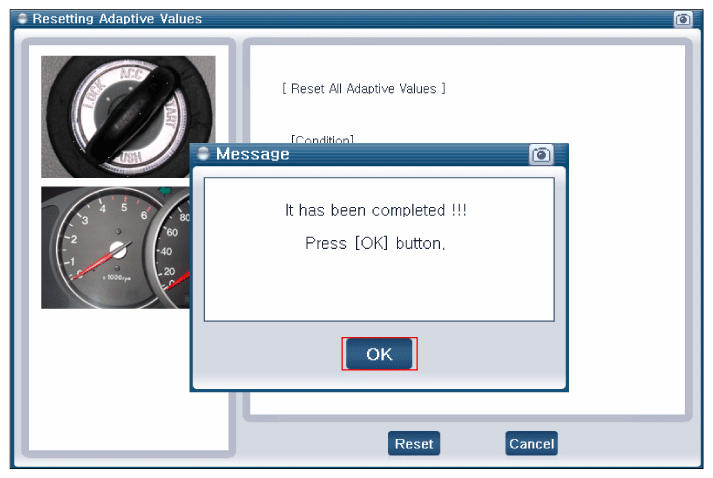

   Fig 4: Scantool Display - Reset Values Completed

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has properly completed, select "OK" button and go to "Verification of Vehicle Repair " procedure.
