Signal Waveform & Data

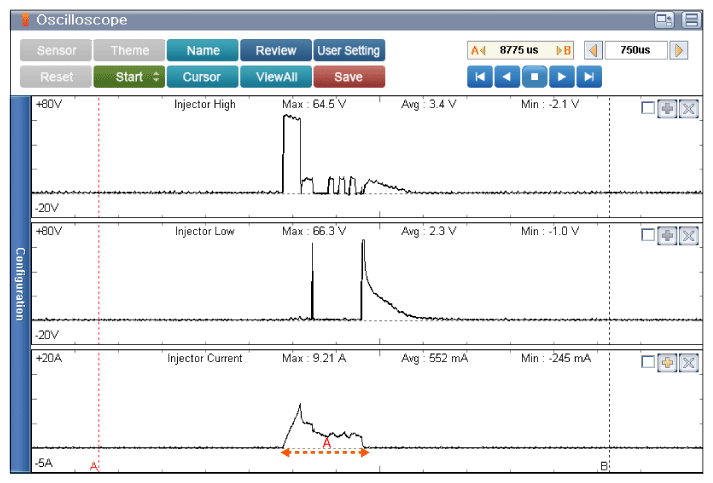

Fig 1: Scantool Display - Signal Waveform & Data (Engine Idle After Warm-Up)

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1545us

CH. A - Injector MAX 64.4V

CH. AUX - Injector current MAX 9.09A

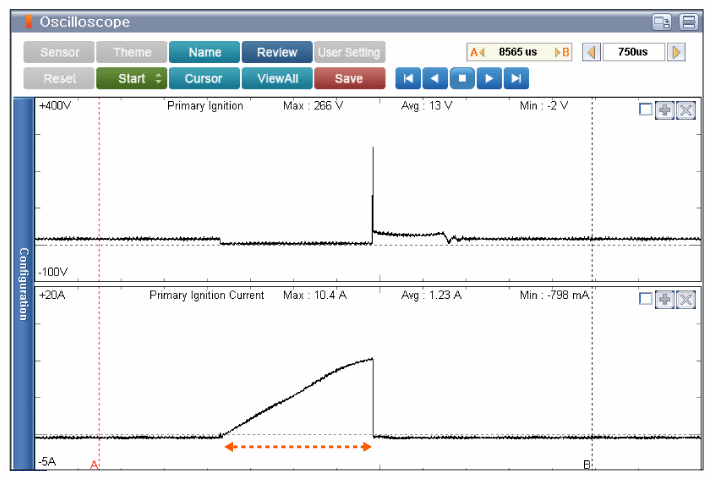

Fig 2: Scantool Display - Signal Waveform & Data (Engine Idle After Warm-Up)

Courtesy of KIA MOTORS AMERICA, INC.

Primary ignition control time - Approx. 750us

CH. A - Primary ignition MAX 266V

CH. AUX - Primary ignition current MAX 10.4A
