Monitor DTC Status

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC) " with KDS/GDS.
Is DTC status displayed as Active?

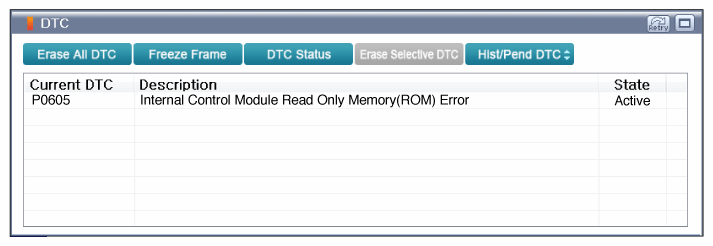

Fig 1: Scantool Display - Diagnostic Trouble Code
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Go to "Terminal & Connector Inspection " procedure.
NO
- Go to "Verification of Vehicle Repair " procedure.
