Engine Oil Flow Diagram

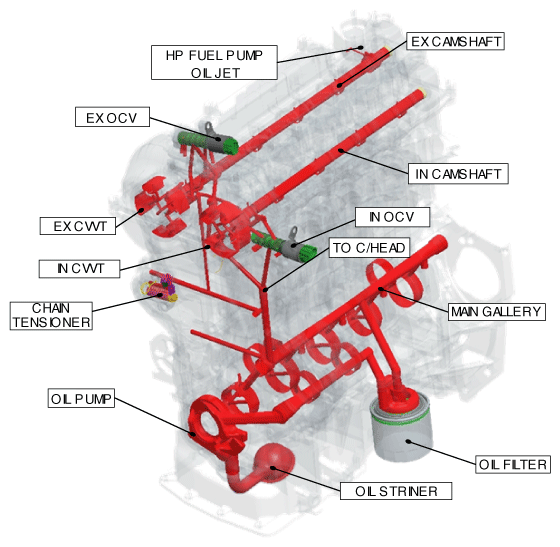

Fig 1: Engine Oil Flow Diagram (1 Of 2)
G12226994Courtesy of KIA MOTORS AMERICA, INC.

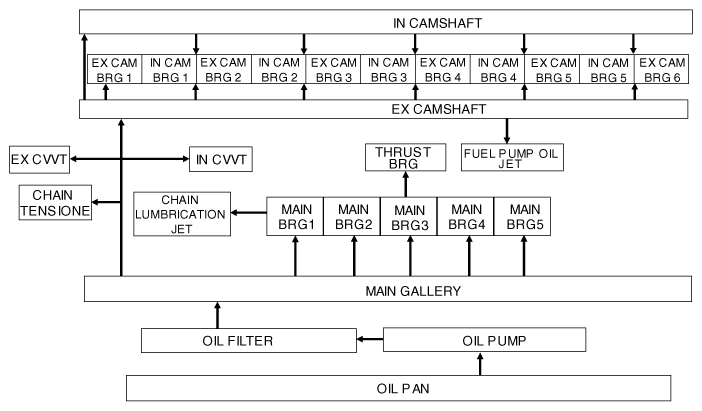

Fig 2: Engine Oil Flow Diagram (2 Of 2)
G12226995Courtesy of KIA MOTORS AMERICA, INC.
