Component Inspection

■ Perform HO2S (S2) Heater Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Engine "Running".
3. Perform "Actuation Test"  for HO2S (S2) Heater.

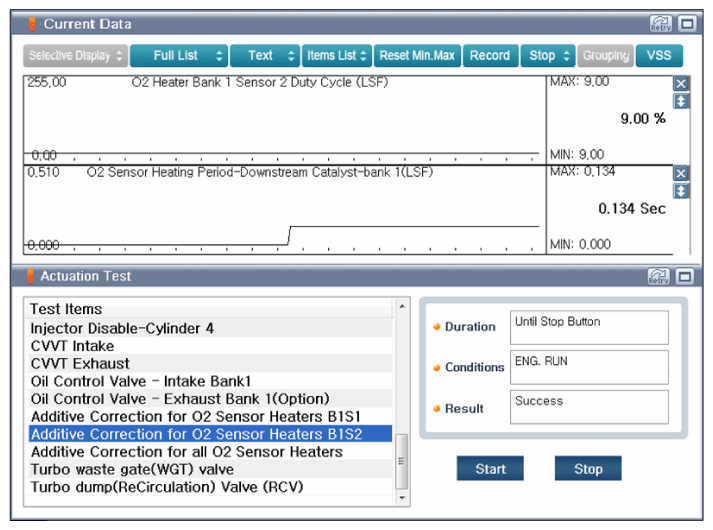

Fig 1: Scantool Display - Additive Correction For O2 Sensor Heaters B1S2 Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

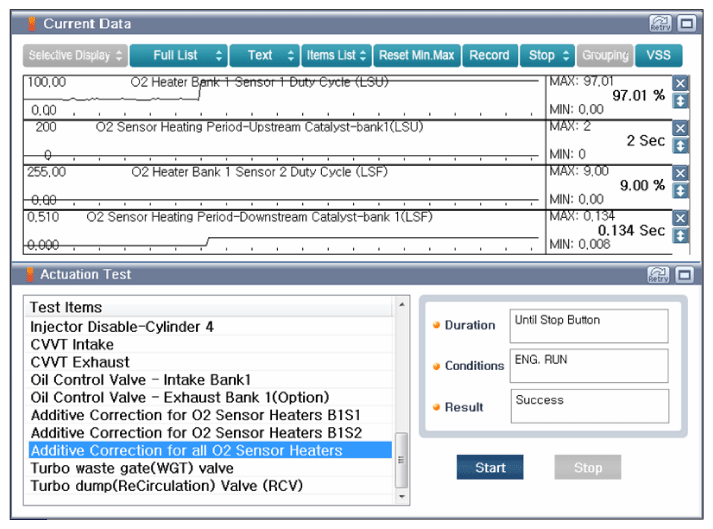

Fig 2: Scantool Display - Additive Correction For All O2 Sensor Heaters Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

■ Inspect HO2S (S2) Heater

1. Ignition "OFF".
2. Disconnect HO2S (S2) connector.
3. Measure resistance between Pin No. 3 (Power) terminal and Pin No. 4 (Control) terminal of the HO2S (S2) Heater. (component side).

   Specification:  Approx. 9.0Ω (20°C) (68°F)

■ Confirm Part Inspection

1. Does the HO2S (S2) Heater operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace HO2S (S2) and then go to "Verification of Vehicle Repair " procedure.
