Monitor KDS/GDS Data

Connect KDS/GDS to Data Link Connector (DLC).
Warm up the engine to normal operating temperature.
Check the "Current Data " about related DTC with KDS/GDS.

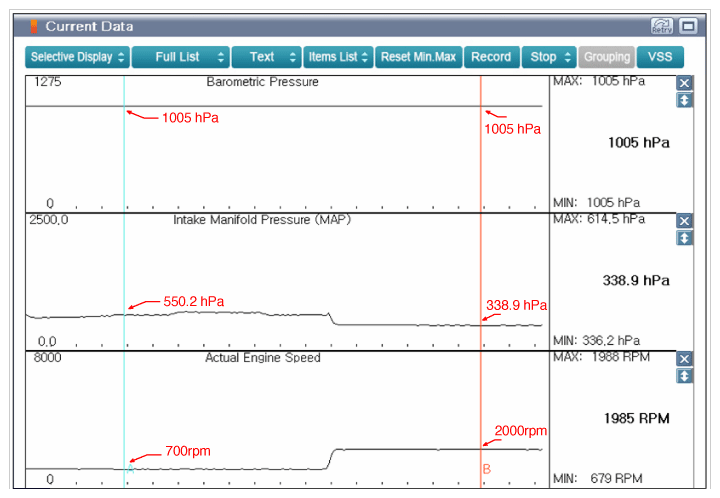

Fig 1: Scantool Display - Engine Idle After Warm-Up (Approx 2000RPM)
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed correctly?
YES
- The system is operating correctly at this time. Go to "Verification of Vehicle Repair " procedure.
NO
- Retry all of procedures once again. If the BPS is in abnormal condition, replace it. Go to "Verification of Vehicle Repair " procedure.
