Smart Key Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "SMK STATUS INFORMATION".

Fig 1: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.

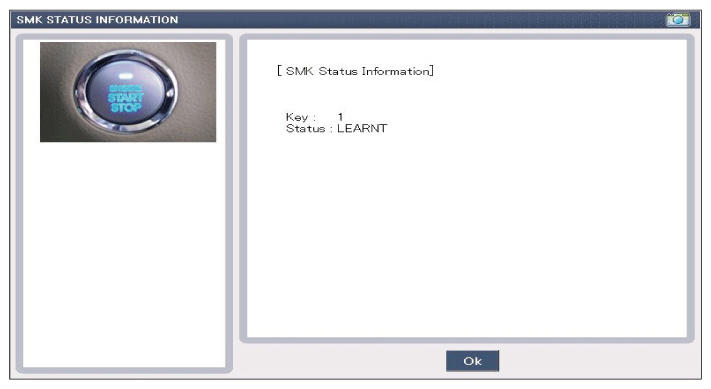

Fig 2: Scantool Display - SMK Status Information
Courtesy of KIA MOTORS AMERICA, INC.
