Smart Key Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locate Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then perform "CODE SAVING".

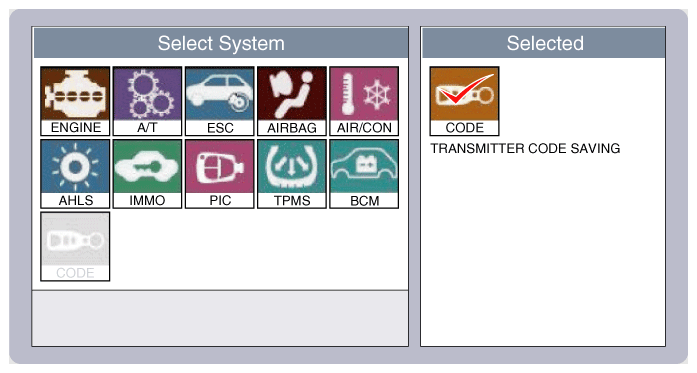

Fig 2: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, press the "ENTER" button to display the following screen.

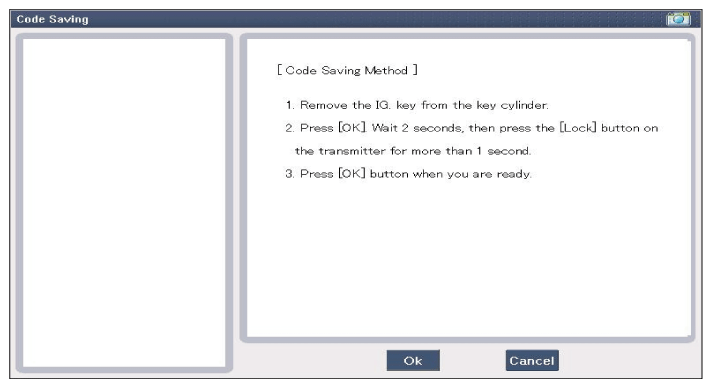

Fig 3: Scantool Display - Code Saving Method
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB to "OFF", push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

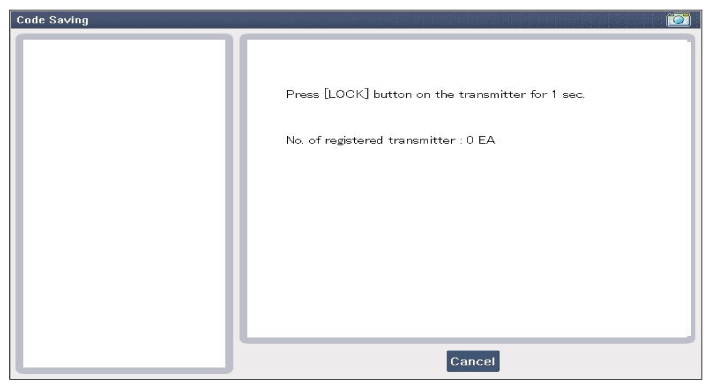

Fig 4: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

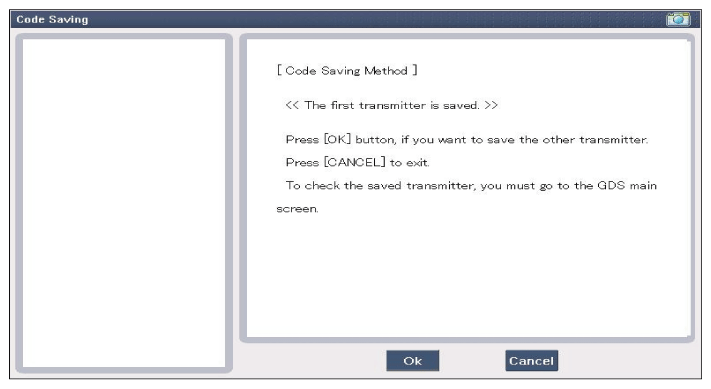

Fig 5: Scantool Display - Code Saving Method (First Transmitter)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

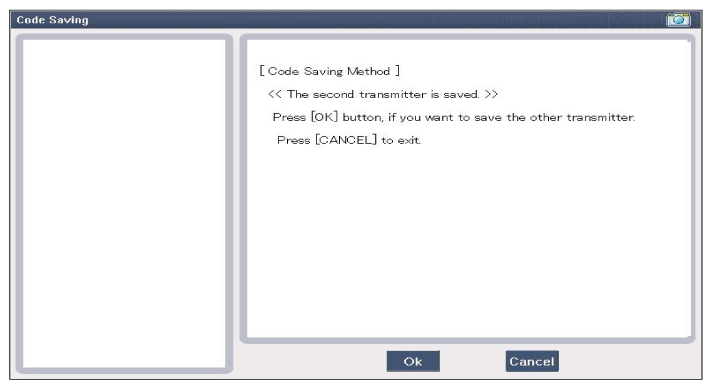

Fig 7: Scantool Display - Code Saving Method (Second Transmitter)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

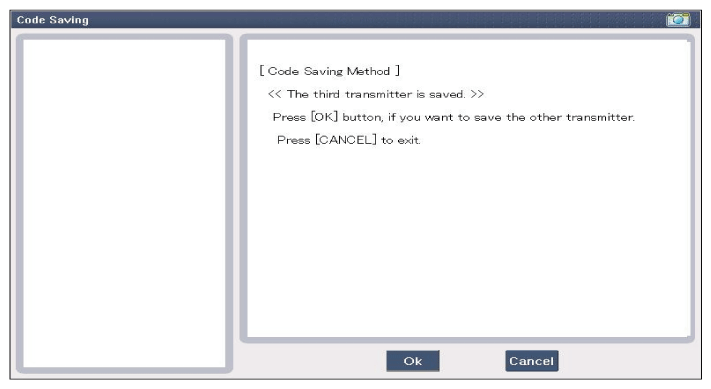

Fig 9: Scantool Display - Code Saving Method (Third Transmitter)
Courtesy of KIA MOTORS AMERICA, INC.

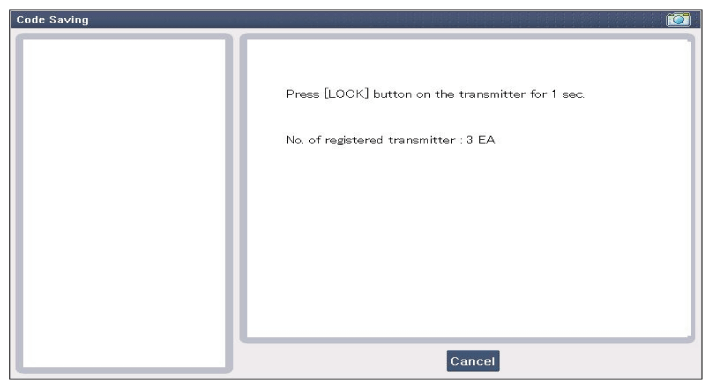

Fig 10: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

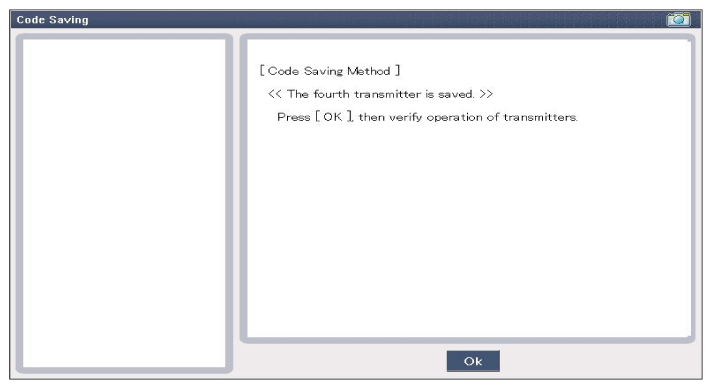

Fig 11: Scantool Display - Code Saving Method (Fourth Transmitter)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
