Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

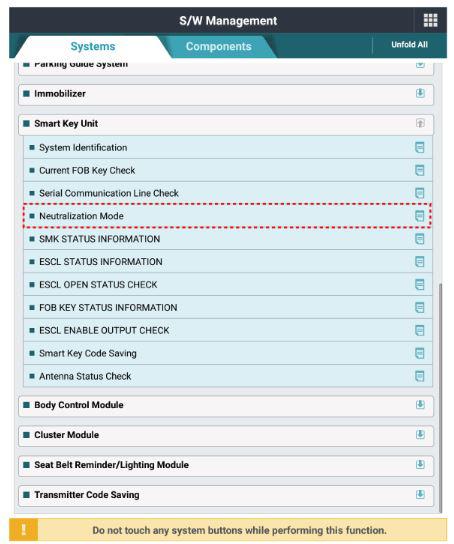

Fig 1: Screen Display - Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

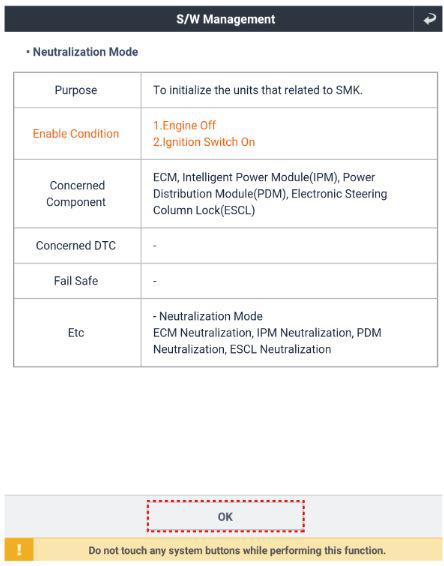

Fig 2: Screen Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

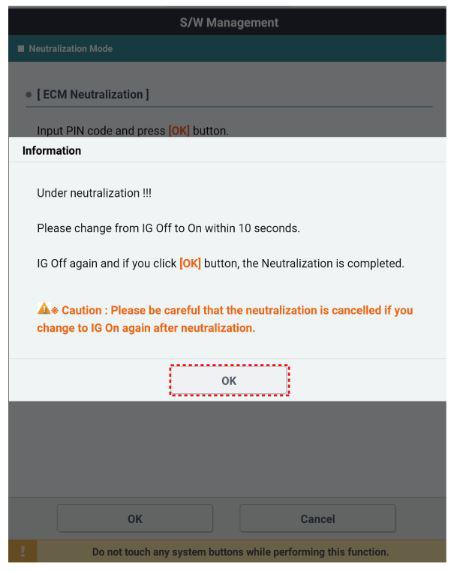

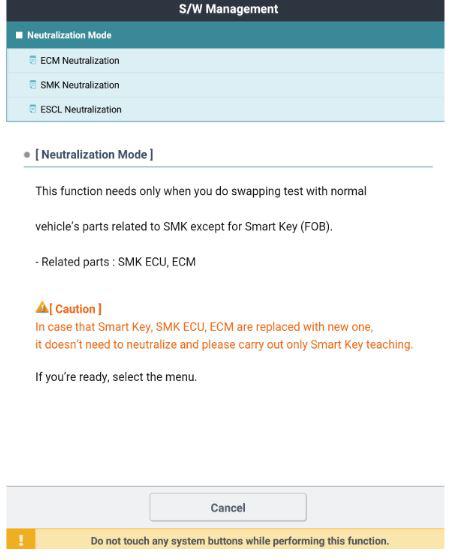

Fig 3: Screen Display - Neutralization Mode Caution

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - ECM Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

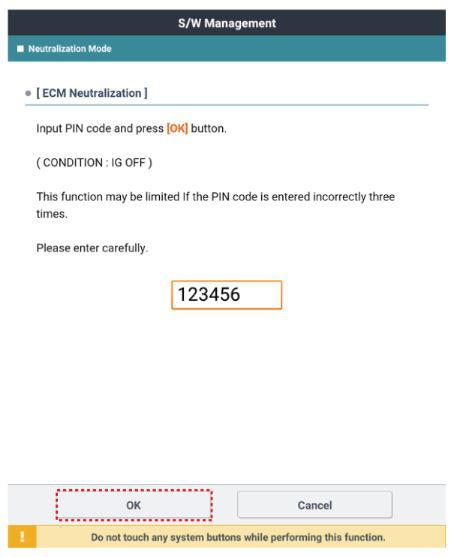

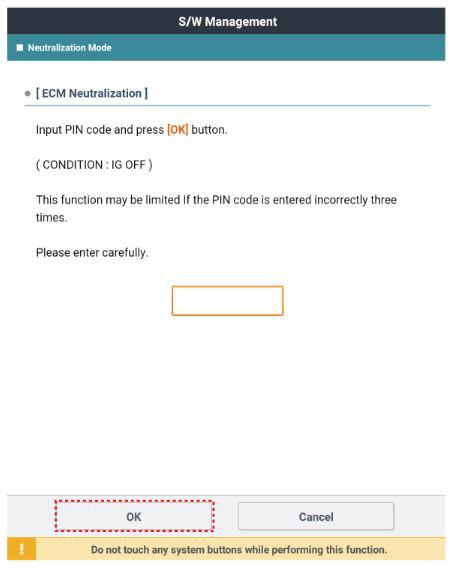

Fig 5: Screen Display - ECM Neutralization PIN code

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - ECM Neutralization Completed

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - ESCL Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

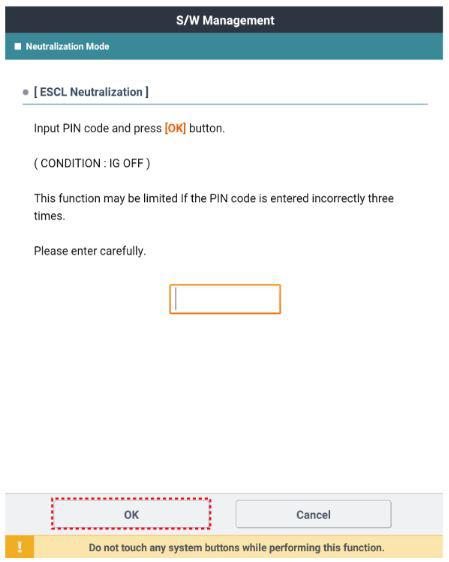

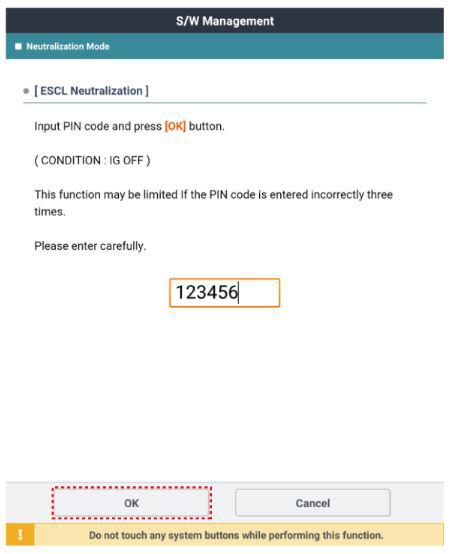

Fig 8: Screen Display - ESCL Neutralization PIN code

Courtesy of KIA MOTORS AMERICA, INC.

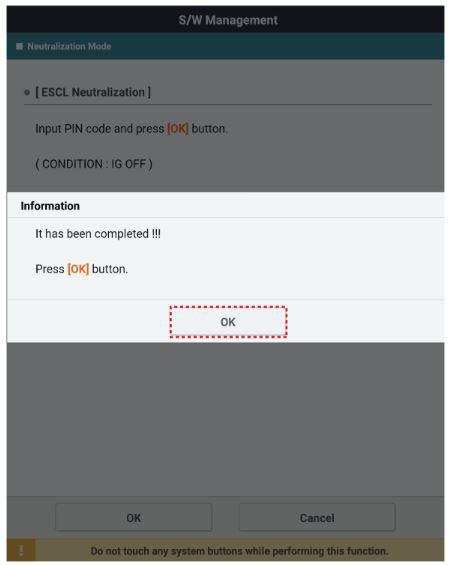

Fig 9: Screen Display - ESCL Neutralization Completed

Courtesy of KIA MOTORS AMERICA, INC.

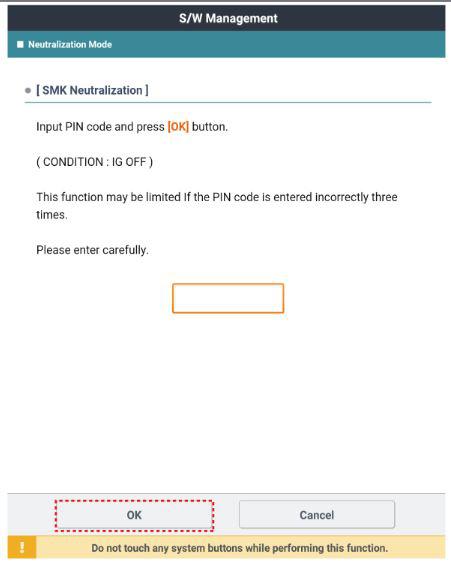

Fig 10: Screen Display - SMK Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

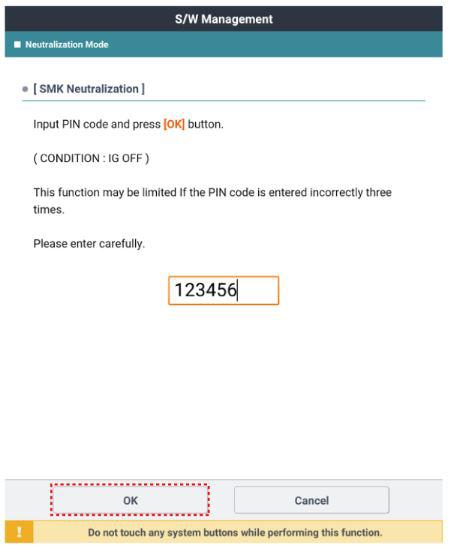

Fig 11: Screen Display - SMK Neutralization PIN code

Courtesy of KIA MOTORS AMERICA, INC.

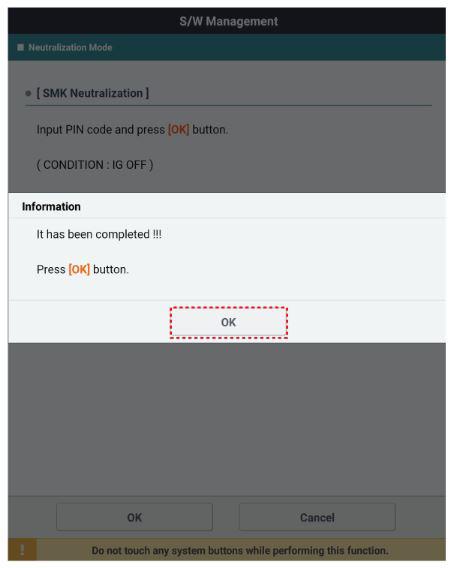

Fig 12: Screen Display - SMK Neutralization Completed

Courtesy of KIA MOTORS AMERICA, INC.
