Trunk Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid garnish.

    (Refer to Body - "TRUNK LID BACK PANEL & GARNISH ")

  3. Disconnect the trunk open switch connector (A).

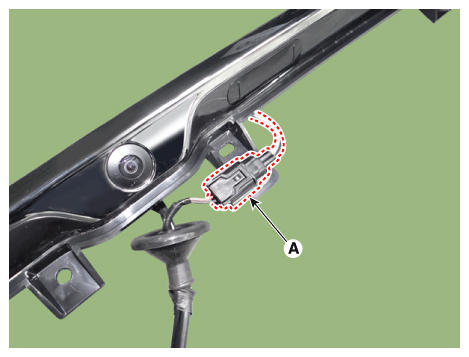

    Fig 1: Locating Trunk Open Switch Connector
    G12298947Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the trunk open switch (A) after loosening the mounting screws.

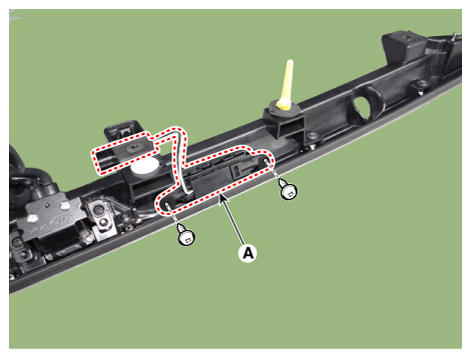

    Fig 2: Locating Trunk Open Switch With Mounting Screws
    G12298948Courtesy of KIA MOTORS AMERICA, INC.
