Monitor KDS/GDS Data

  1. Ignition "OFF", connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "ON", Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with KDS/GDS.

    Specification:  Refer to Fig 1

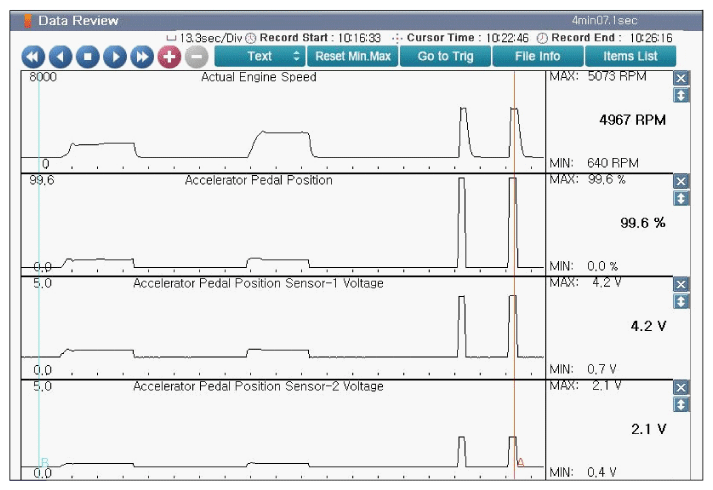

    Fig 1: Scantool Display - Engine Idle After Warm Up (Approx 2000RPM, 3000RPM And 5000RPM)
    G12283803Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured value within specification?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

    NO
