Calibration Procedure.

Check for vehicle alignment and tire pressure for accurate camera calibration.
Windshield must be clean and free of any dirt or object.
Calibration target installation procedure as follows:
1. Set the calibration target height approx. 90cm ± 2cm from the ground and align the center of target with center line of vehicle.
2. Center of target and center of vehicle should be within ± 5cm.
3. Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Close range target setting)
4. Perform Distance target setting after performing close target setting.
5. Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Far range target setting)

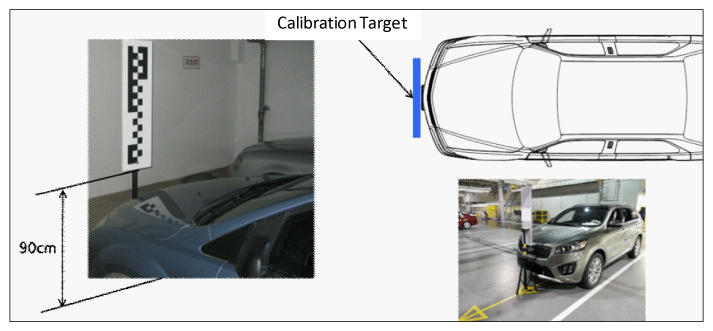

Fig 1: Checking A/S Calibration Target
Courtesy of KIA MOTORS AMERICA, INC.

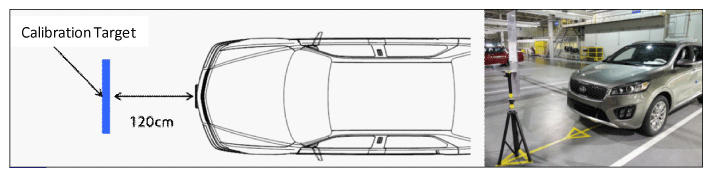

Fig 2: Checking Position Of Vehicle And Calibration Target (Far Range Target Setting: Approx 1.2 M From Front Bumper)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Checking Position Of Vehicle And Calibration Target (Close Range Target Setting: Approx 0 CM From Front Bumper)
Courtesy of KIA MOTORS AMERICA, INC.
