Signal Waveform & Data

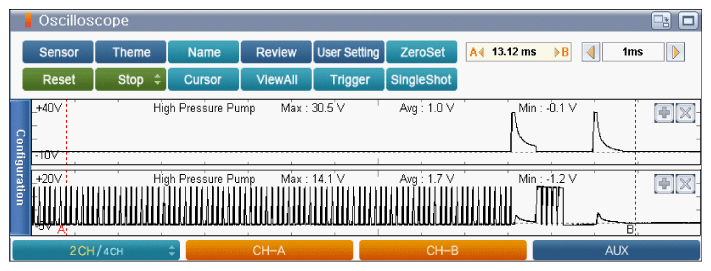

Fig 1: Scantool Display - Normal Waveforms Of Fuel Pressure Regulator At Engine Idle
G12153347Courtesy of KIA MOTORS AMERICA, INC.
