Repair Procedures: Inspection

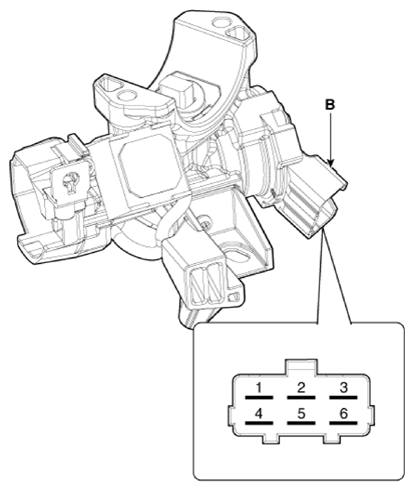

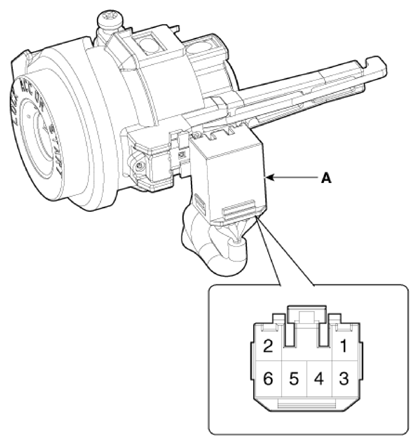

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G12698164Courtesy of KIA MOTORS AMERICA, INC.
    G12698165Courtesy of KIA MOTORS AMERICA, INC.

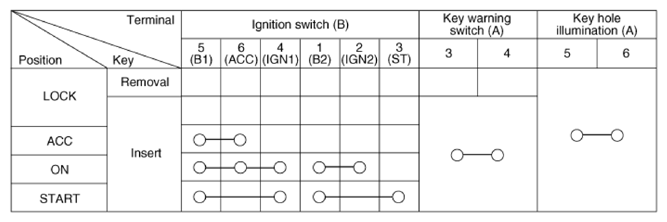

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G12698166Courtesy of KIA MOTORS AMERICA, INC.
